View the overall state of a Project

Overview

The Mend Platform Project Summary Dashboard provides a high-level overview and analytics of SCA, SAST, and Container Image scan findings for the current Project.

Getting it done

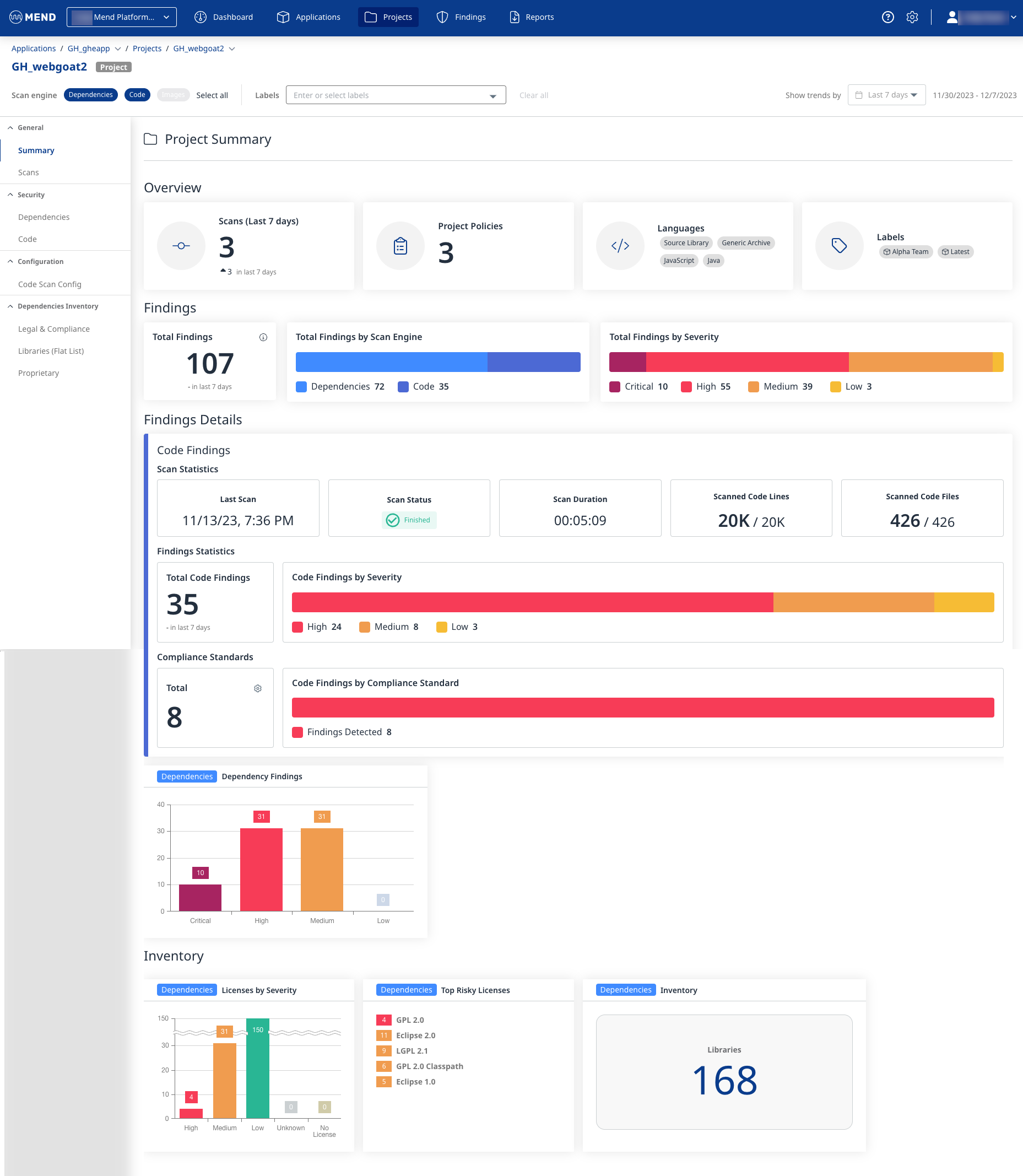

The Mend Platform Project Summary Dashboard is divided into five sections. Data filtering is at the top, followed by the Overview, Findings, Findings Details, and Inventory sections.

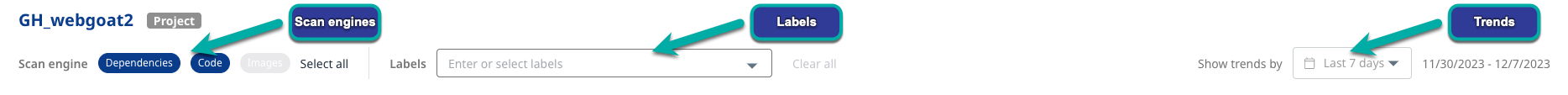

Data filtering

The data filtering section of the Mend Platform Project Summary Dashboard offers three ways of refining the findings being displayed: by scan engine, by label, and by trend. These filtering methods can be used individually or combined to drill down into the most granular results.

Scan engines

The findings from the three different scan engines can be toggled on or off, allowing you to review them 1 at a time or all at once.

Note: The scan engine must be enabled for your organization by a Mend Admin before it can be used by you to display scan findings.

Labels

Labels can be used to refine the findings on the Mend Platform Project Summary Dashboard to display only results for Projects within the current Application with the listed Labels assigned.

Trends

Trends can be used to refine the findings displayed on the Mend Platform Project Summary Dashboard to only results within the past 7 days, 30 days, 90 days, 180 days, or the Last year.

Overview

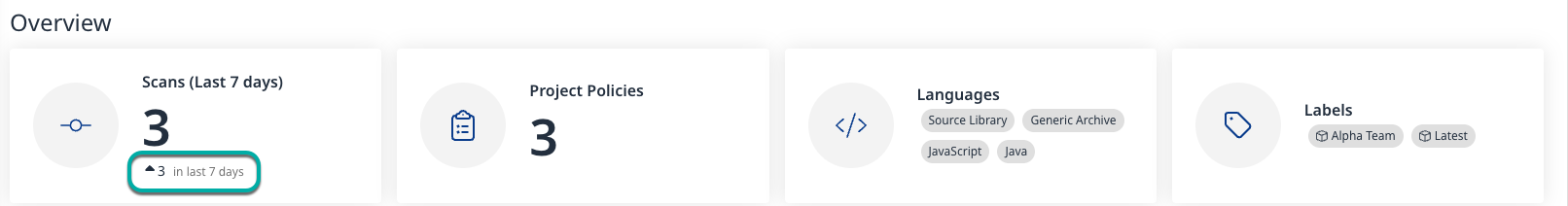

The Overview section comprises four widgets: Projects, Scans, App. policies, and Labels.

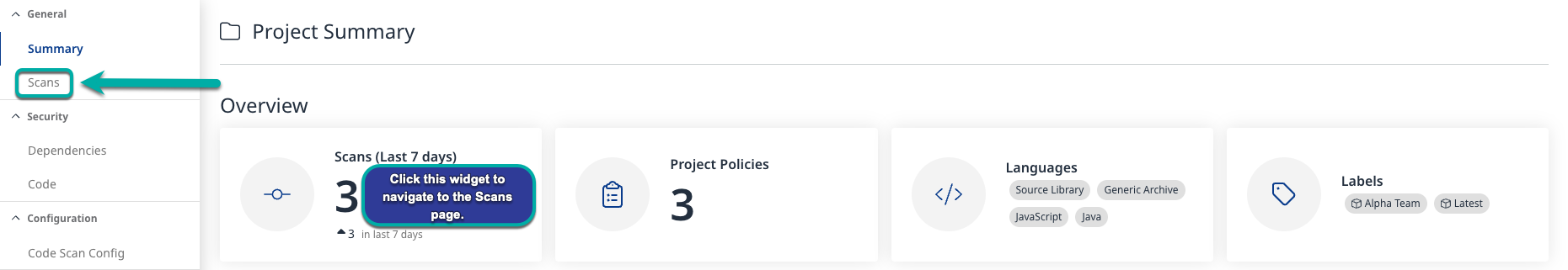

• The Scans widget shows the total number of Scans performed on the current Project. This widget, if clicked, links to the Scans page.

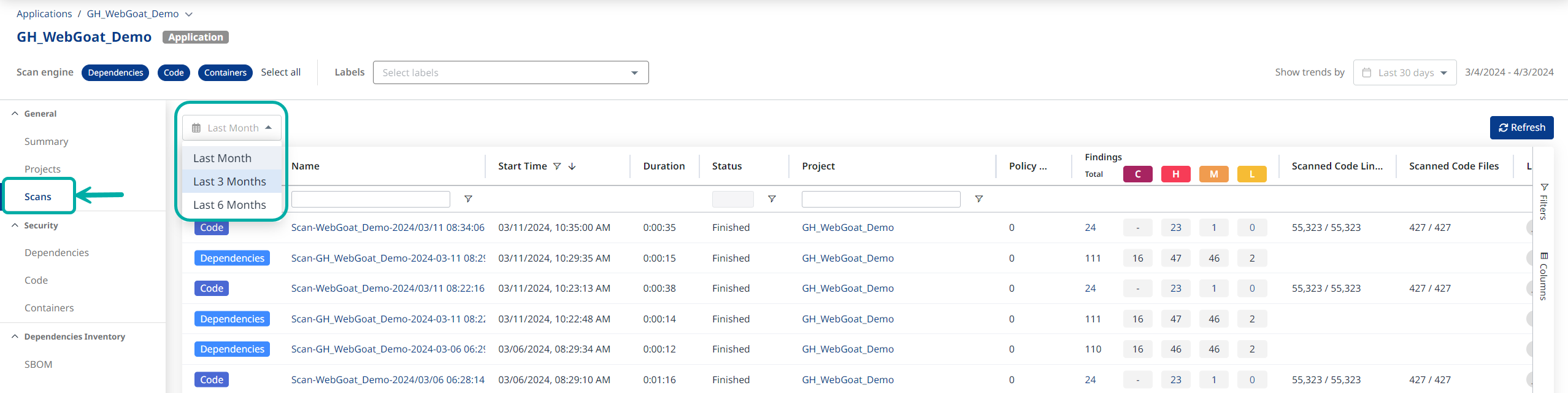

  In the Scans page you can see a history of the scans that took place in your project. Here you can apply various filters as well as add/remove and reorder columns (as explained here), and you can also select one of the predefined time ranges from the dropdown menu (Last Month / Last 3 Months / Last 6 Months).

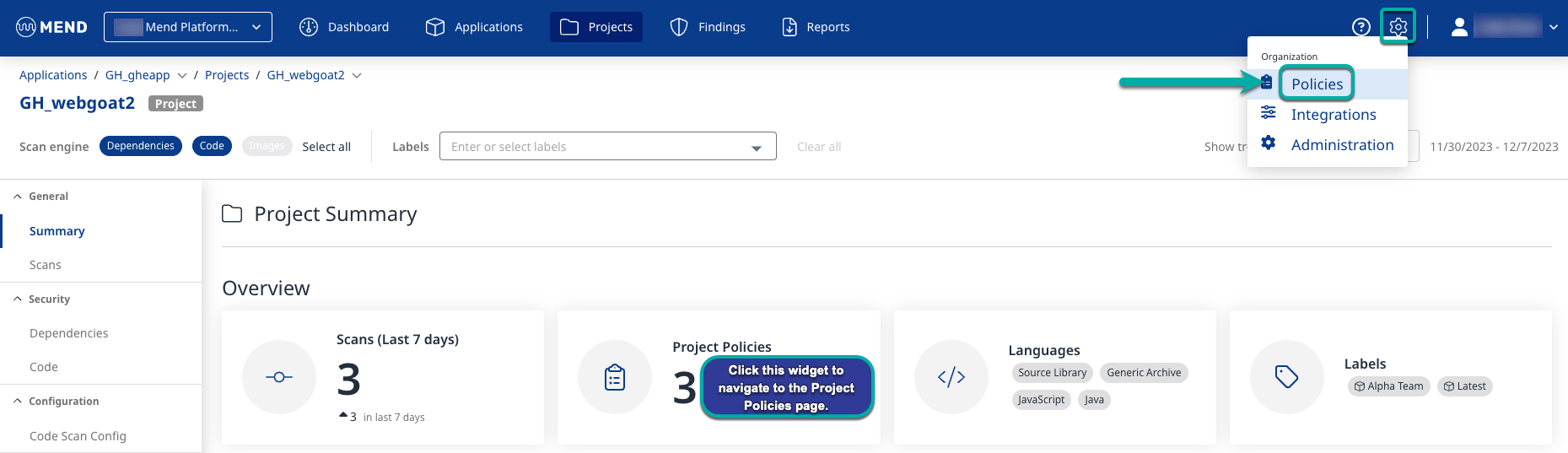

• The Project Policies widget shows the total number of policies created at the Project level. This widget, if clicked, links to the Project’s policy page, which is found in the settings menu.



• The Languages widget shows the different Library types used within the Project.

• The Labels widget shows the Labels assigned to the current Project.

The Scans widget reflects the selected time window set by the Trends filter.

Findings

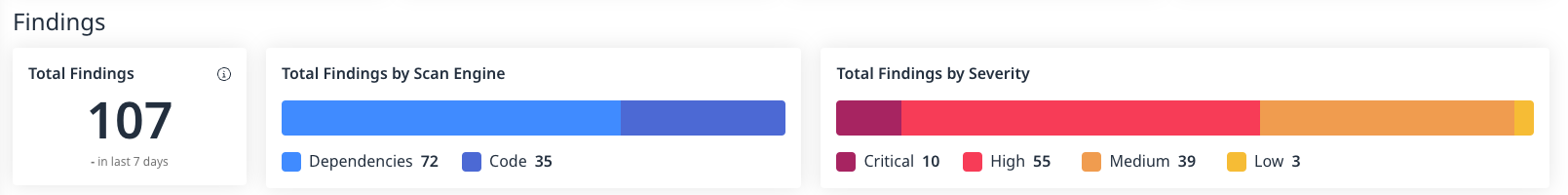

The Findings section comprises three widgets: Total Findings, Total Findings by Scan Engine, and Total Findings by Severity.

• The Total Findings widget shows the total number of findings from within the current Project.

• The Total Findings by Scan Engine widget shows the total number of findings from within the current Project by each active scan engine within the current application. The different scan engines are assigned a color. The color key is on the bottom of the widget.

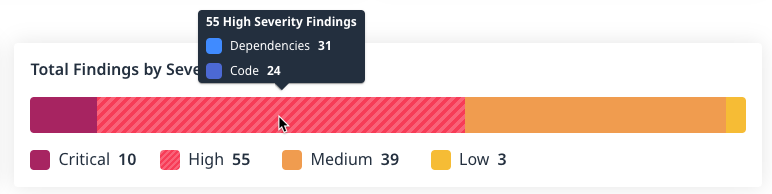

• The Total Findings by Severity widget shows the total number of findings from within the current Project by severity, Critical, High, Medium, or Low. The different severities are assigned a color. The color key is on the bottom of the widget.
  - Hover over a section of the Total Findings by Severity graph to reveal a breakdown of the findings by the Scan engine.



Findings Details

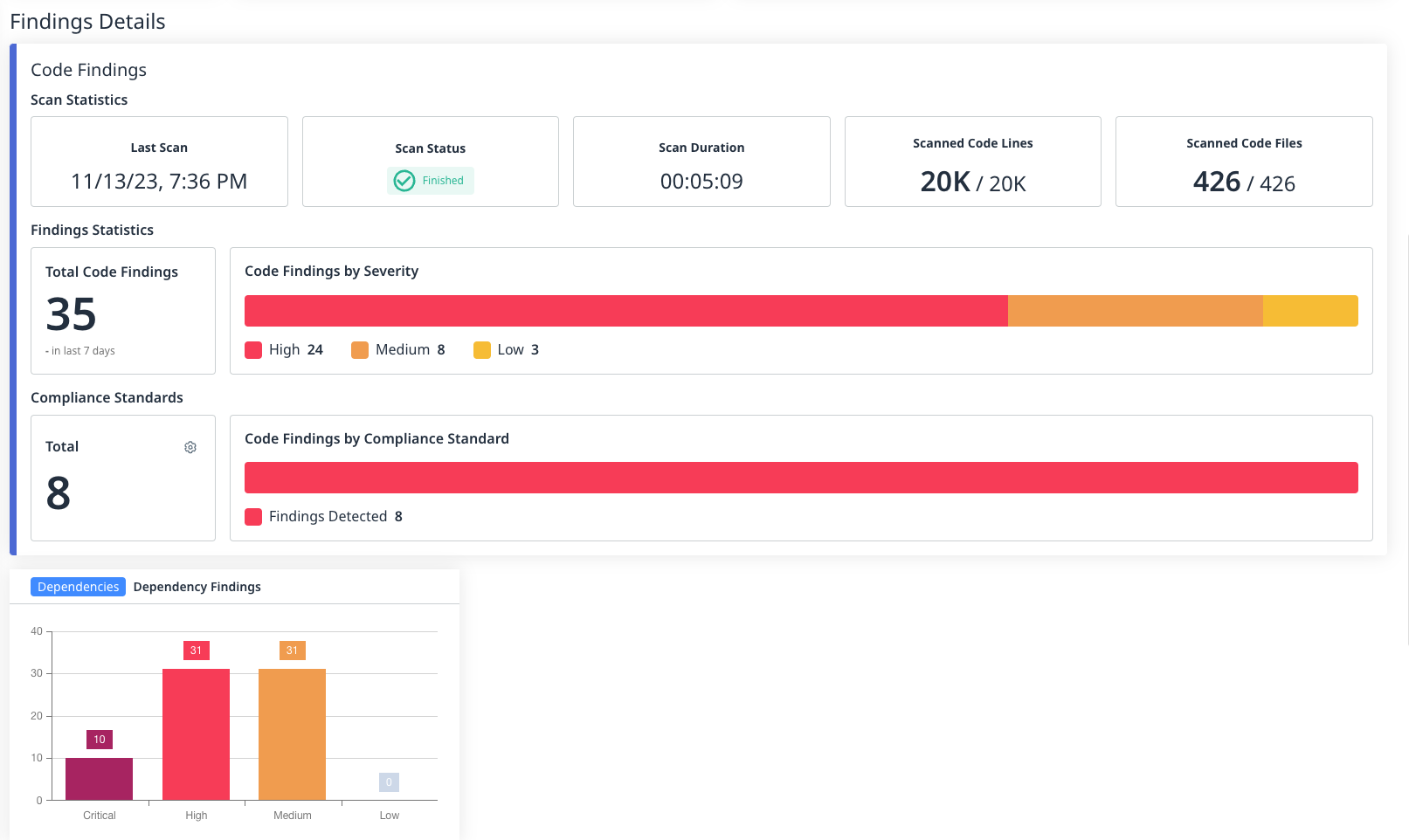

The Findings Details section comprises five widgets: Total Code Findings, Code Findings by Severity, Total Compliance Standards, Code Findings by Compliance Standard, and Dependencies.

Scan Statistics

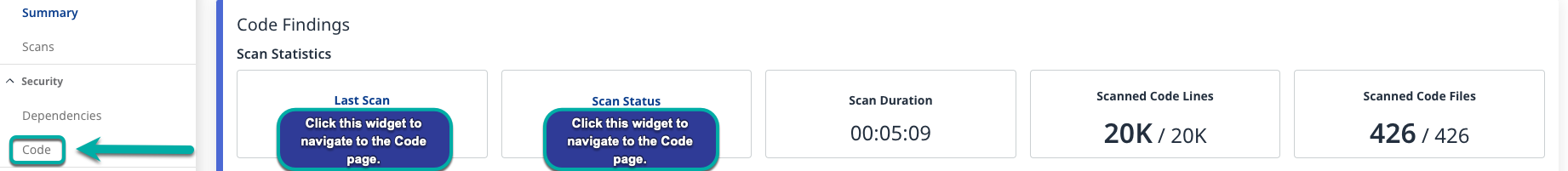

• The Last Scan widget shows the date and time of the last SAST scan performed. This widget, if clicked, links to the scan log of the last SAST scan, which is found on the Code page.

• The Scan Status widget shows the status of the last SAST scan performed. This widget, if clicked, links to the scan log of the last SAST scan, which is found on the Code page.



• The Scan Duration widget shows how much time the last SAST scan took to complete

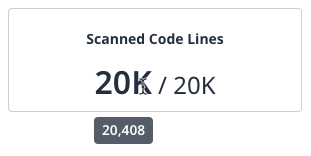

• The Scanned Code Lines widget shows a rounded approximation of the number of lines scanned. If you hover over the number, the precise number of code lines scanned will appear.



• The Scanned Code Files widget shows the number of code files scanned.

Findings Statistics

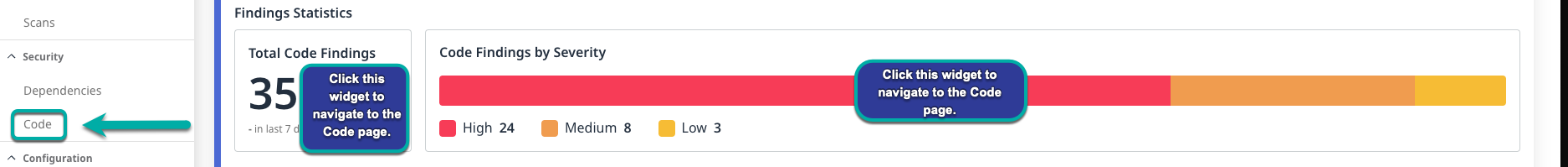

• The Total Code Findings widget shows the total SAST findings within the current Application. This widget, if clicked, links to the Code page with no pre-applied filters.

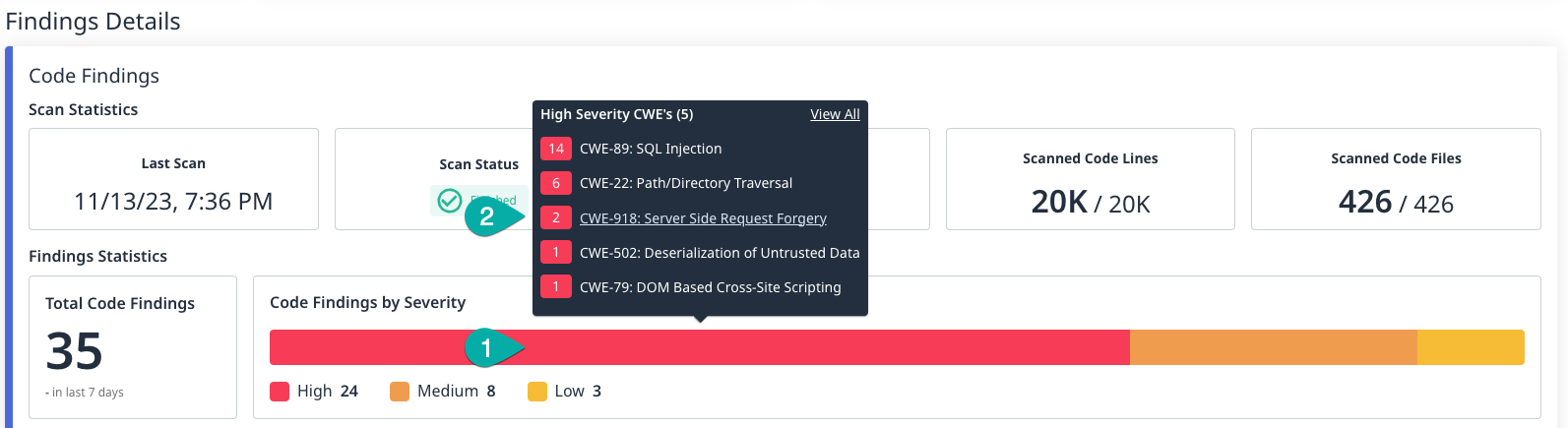

• The Code Findings by Severity widget shows the total SAST findings from within the current Project by severity, Critical, High, Medium, or Low. The different severities are assigned a color. The color key is on the bottom of the widget.
  1. Hover over a section of the Code Findings by Severity graph to reveal a breakdown of the findings by CWE.
  2. Click a CWE to navigate to the Code page filtered for findings matching that CWE.



  OR click a section of the severity graph to navigate to the Code page filtered for findings matching that severity.



Compliance Standards

• The Total widget shows the total number of Compliance Standards selected for which findings are displayed.

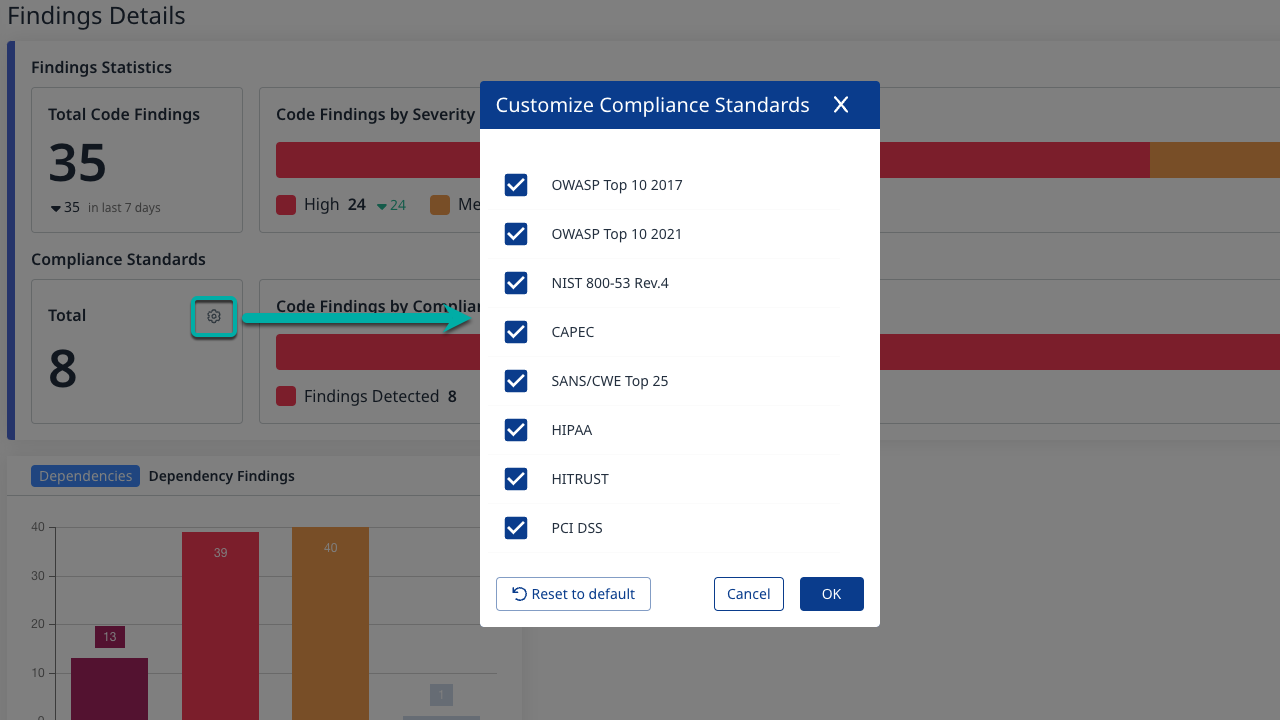

  - Click the cog in the top right corner of the widget to change which Compliance Standards findings are being displayed for.

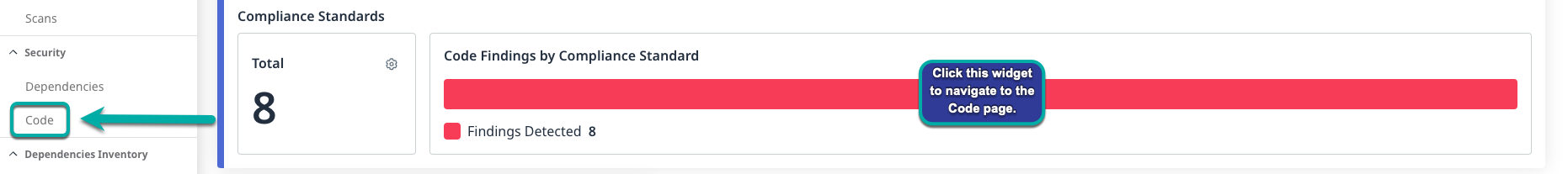

• The Code Findings by Compliance Standard widget shows the total number of Compliance Standards violations detected within the current Project.

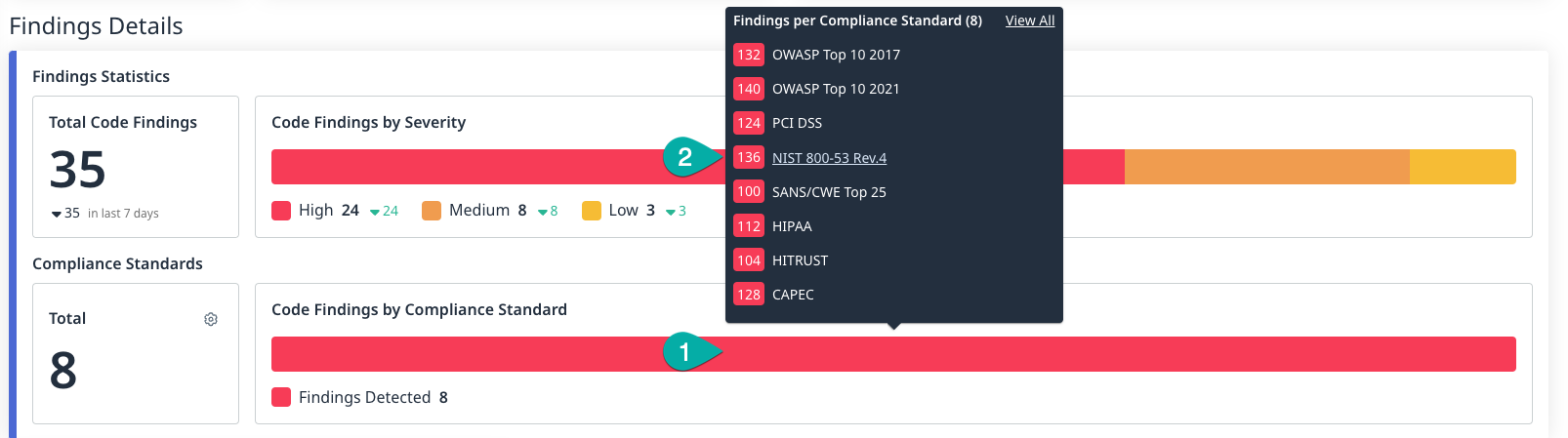

  1. Hover over the Code Findings by Compliance Standard graph to reveal a breakdown of the findings by Compliance Standard.
  2. Click a Compliance Standard to navigate to the Code page filtered for findings matching that Compliance Standard.



  OR click a section of the Code Findings by Compliance Standard graph to navigate to the Code page filtered for findings matching only Compliance Standards.

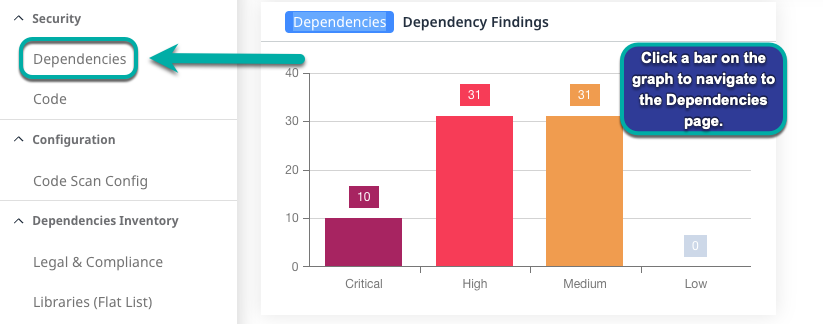

• The Dependencies widget shows the total number of findings for vulnerable dependencies within the current Projects by severity, Critical, High, Medium, or Low. The different severities are assigned a color.
  - Click a column on the Dependency Findings severity graph to navigate to the Dependencies page filtered for findings matching that severity.



Inventory

• The Licenses by Severity widget shows the total SCA findings within the current Project by severity, Critical, High, Medium, or Low. The different severities are assigned a color. The color key is on the bottom of the widget.

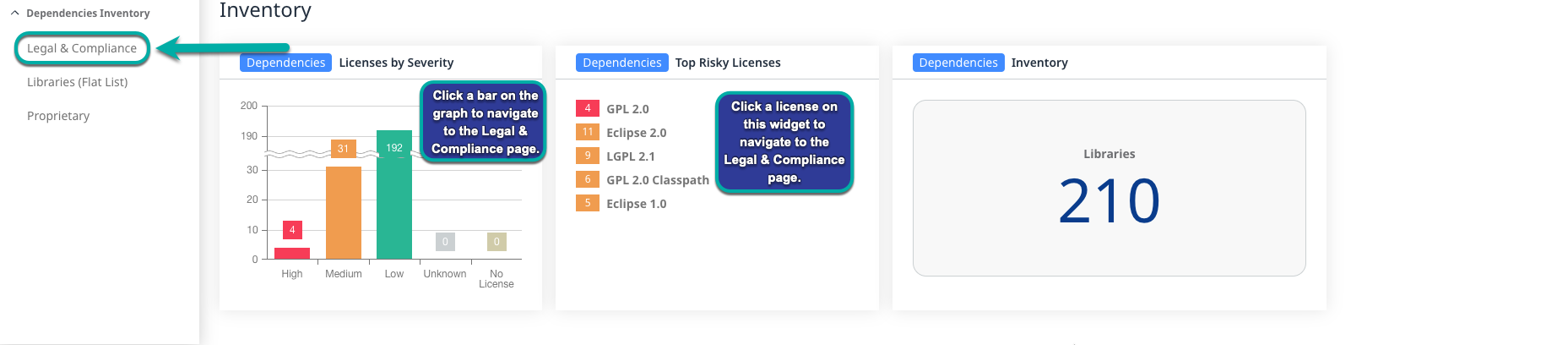

  - Click a section of the Licenses by Severity graph to navigate to the Legal & Compliance page filtered for findings matching the severity.

• The Top Risky Licenses widget shows a list of Licenses associated with the highest level of risk within the Inventory of Libraries from within the current Project.
  - Click a License to navigate to the Legal & Compliance page filtered for findings matching the License.

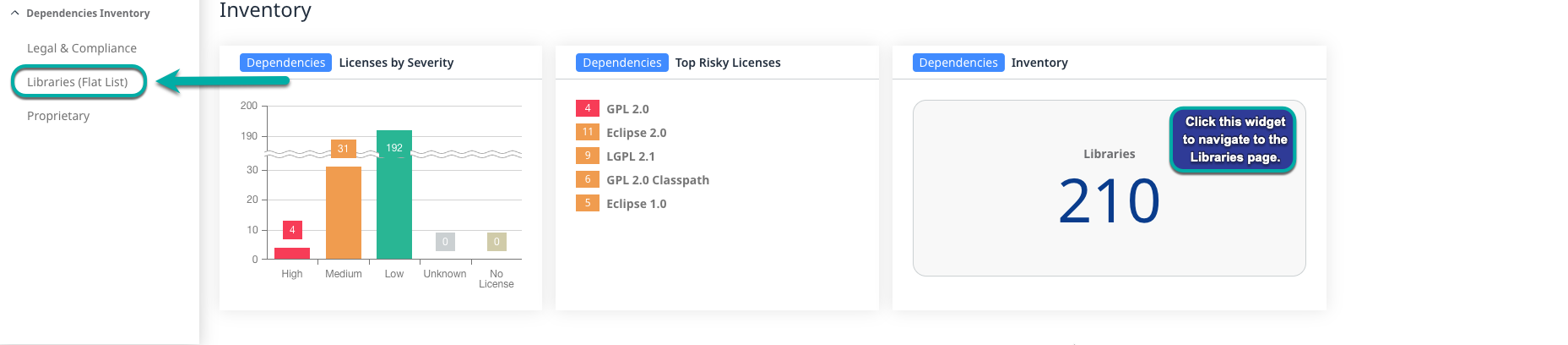

• The Inventory widget shows the total number of open-source libraries from within the current Project. This widget, if clicked, links to the Libraries (Flat List) page with no pre-applied filters.
