Workflow configuration parameters in the Mend Platform

Overview

This article covers the Automation Workflow configuration options within the Application of the Mend Platform.

Getting it done

Workflows - General Details

The General Details section is where you name your workflow. This value is displayed in the Name column within the Automation page of the Mend Platform.

Tip: We recommend naming the workflow with a value that will help you and your team understand its usage.

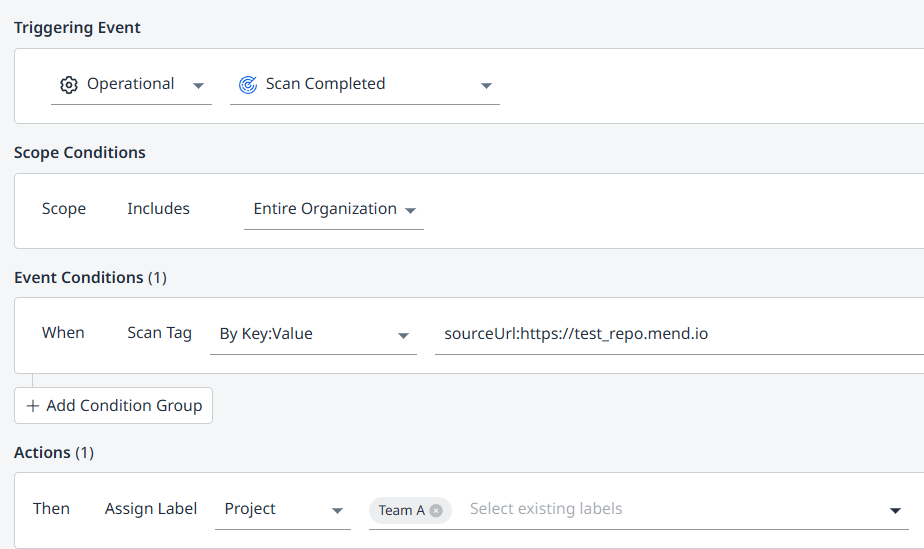

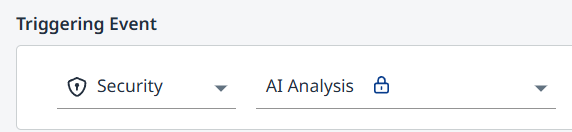

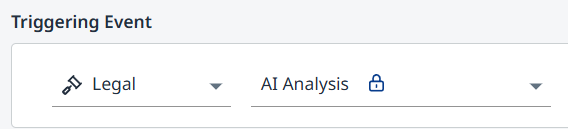

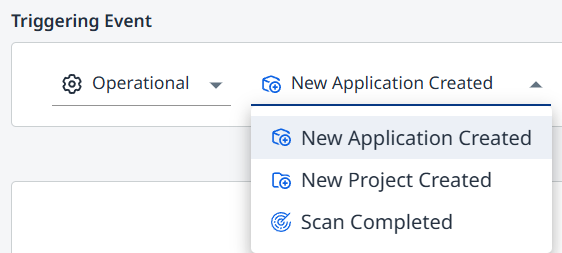

Workflows - Triggering Event

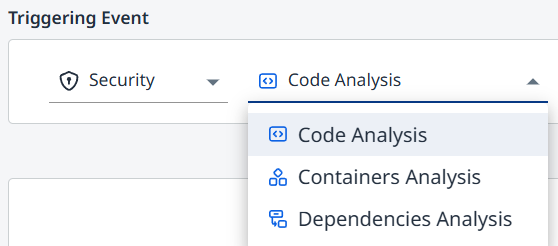

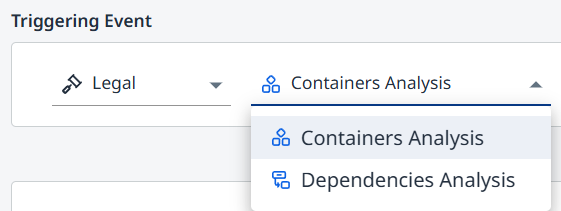

The Triggering Event section is where you set the event(s) (WHEN) to trigger the workflow:

Code Analysis
Containers Analysis
Dependencies Analysis
New Application Created
New Project Created

Workflows - Scope Conditions

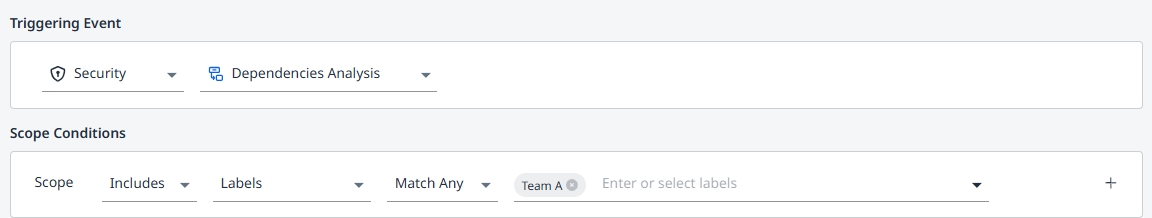

The Scope Conditions section is where you define the scope that the conditions/triggers will apply to, where you can select the option to Include/Exclude the defined settings:

Entire Organization
Application
Project
Labels

Workflows - Event Conditions

The Event Conditions section is where you set the condition(s) (IF) to trigger the workflow. You can set multiple conditions condition groups and define their logical expressions (OR, AND).

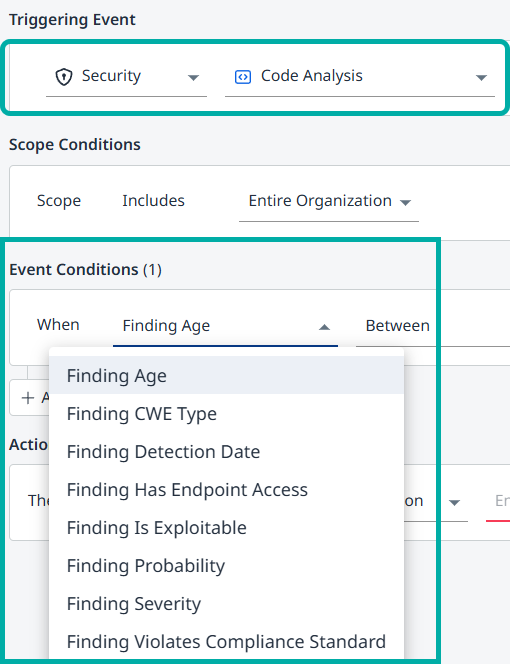

By Code Scan Complete - SAST

Condition	Details
`Finding Age`	Set the Finding Age by those older than a certain number of days or months, defining a specific date range (`Between`) or `Greater Than`.
`Finging CWE Type`	Set the specific CWE Type Id from the provided dropdown list that will trigger the workflow action. Note: Only one CWE can be selected for each condition group created.
`Finding Severity`	Set the Findings Severity and occurrences criteria that will trigger the workflow action. The supported syntax is a number greater than 0.

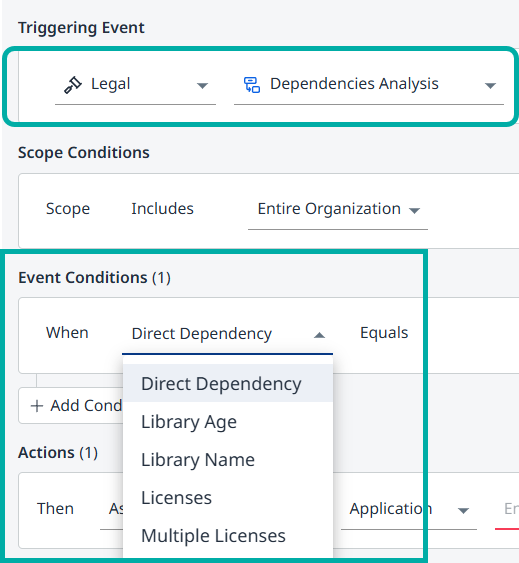

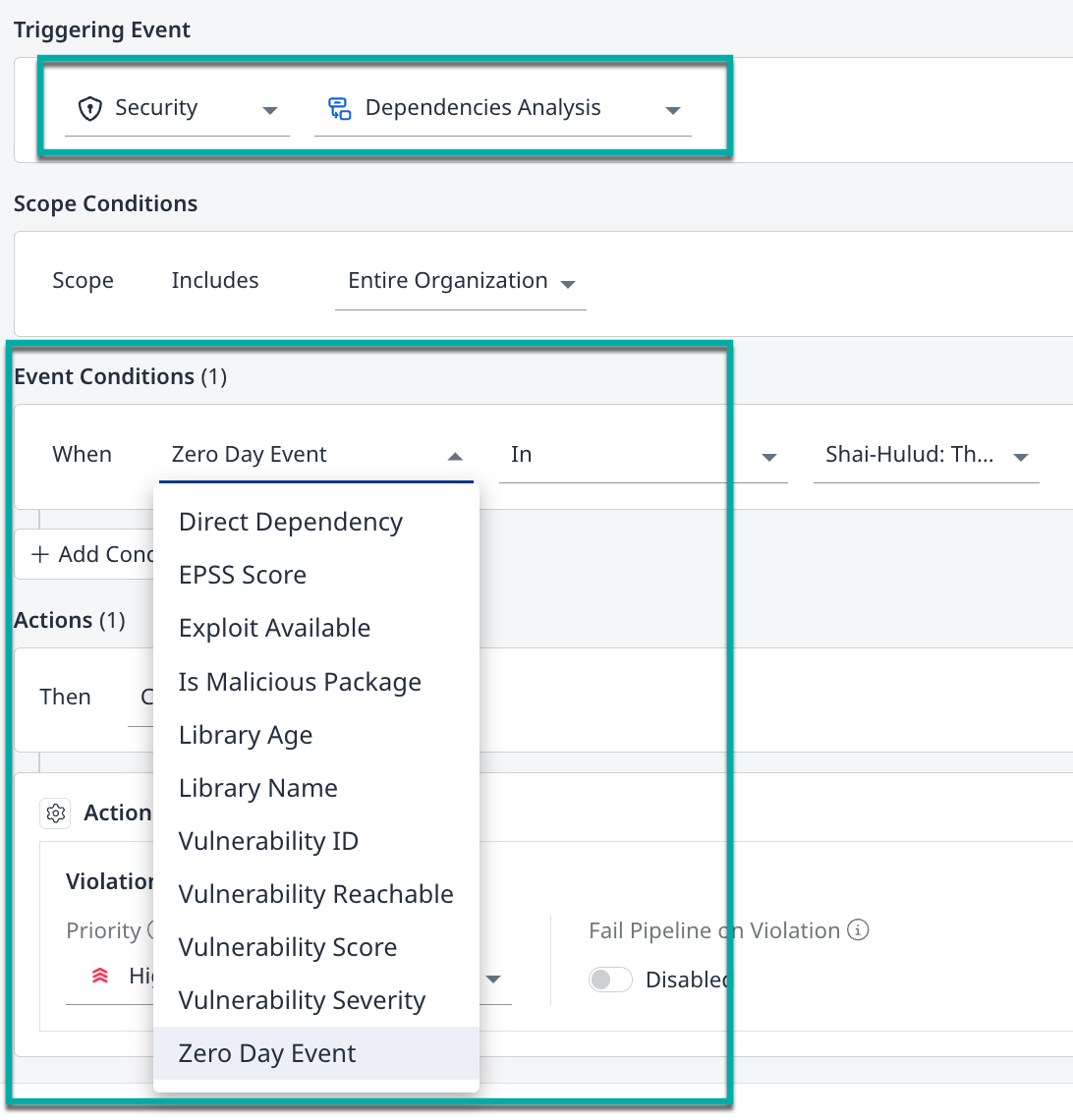

By Dependencies Scan Complete - SCA

Condition	Details
`EPSS Score`	Set the EPSS Score rating criteria that will trigger the workflow action. The supported syntax is a decimal number from 0 - 1. For example: `0.4`.
`Is Malicious Package`	The workflow action will be triggered if a malicious package is detected (or not). You can set the workflow trigger values to either `True` or `False`.
`Library Name`	The workflow action will be triggered if a library name matching the defined criteria is detected.
`Licenses`	The workflow action will be triggered if a specific License Name is found (or not). You can set the workflow trigger values to either `In`, `Is Empty`, `Match`, `Not In` or `No Match` and select license name(s) from the dropdown list.
`Vulnerability ID`	The workflow action will be triggered if a specific Vulnerability Id is found (or not). You can set the workflow trigger values to either `Equals` or `Not Equals`.
`Vulnerability Reachable`	The workflow action will be triggered if a Reachable Vulnerability is found (or not). You can set the workflow trigger values to either `True`, `False`, or `Unknown`.
`Vulnerability Score`	Set the Vulnerability Score rating criteria that will trigger the workflow action. The supported syntax is a decimal number from 0 - 10. For example: `5.4`
`Vulnerability Severity`	The workflow action will be triggered if a Vulnerability Severity equals (or not) . You can set the workflow trigger values to either `Unknown`,`Low`, `Medium`, `High`, or `Critical`.

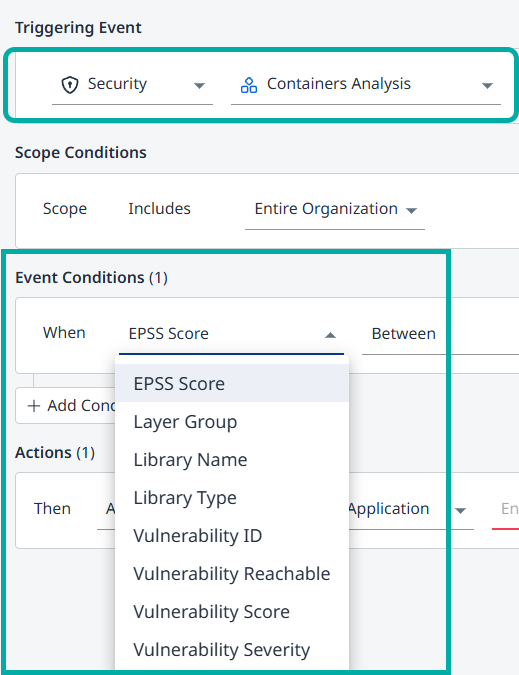

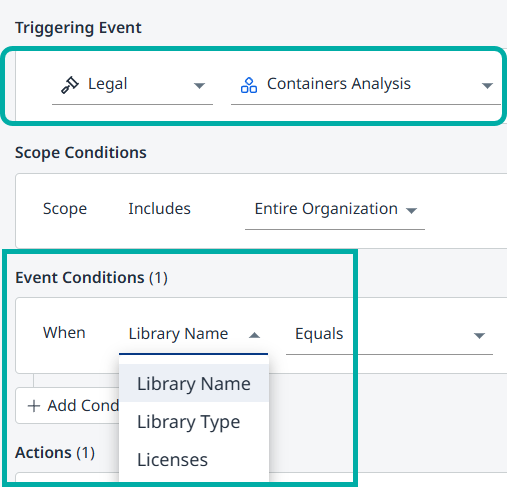

By Image Scan Complete - Containers

Condition	Details
`EPSS Score`	Set the EPSS Score rating criteria that will trigger the workflow action. The supported syntax is a decimal number from 0 - 1. For example: `0.4`.
`Library Name`	The workflow action will be triggered if a library name matching the defined criteria is detected.
`Licenses`	The workflow action will be triggered if a specific License Name is found (or not). You can set the workflow trigger values to either `In`, `Is Empty`, `Match`, `Not In` or `No Match` and select license name(s) from the dropdown list.
`Vulnerability ID`	The workflow action will be triggered if a specific Vulnerability Id is found (or not). You can set the workflow trigger values to either `Equals` or `Not Equals`.
`Vulnerability Reachable`	The workflow action will be triggered if a Reachable Vulnerability is found (or not). You can set the workflow trigger values to either `True` or `False`.
`Vulnerability Score`	Set the Vulnerability Score rating criteria that will trigger the workflow action. The supported syntax is a decimal number from 0 - 10. For example: `5.4`
`Vulnerability Severity`	The workflow action will be triggered if a Vulnerability Severity equals (or not) . You can set the workflow trigger values to either `Unknown`,`Low`, `Medium`, `High`, or `Critical`.

Workflows - Action options

The Actions section is where you set the response (THEN) to the condition(s) being met for the workflow.

Value	Details

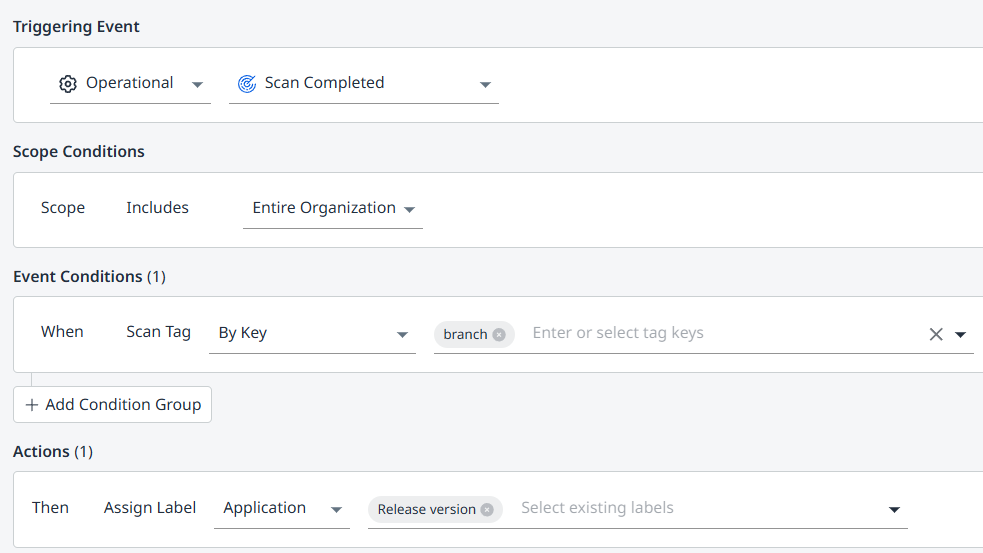

Assign Label	Set the Labels from the provided dropdown list that will be assigned for the Application/Project.
Create Jira Issue	Create a Jira Issue. Note: Creating Jira Issues from within the Mend Platform requires you to have Mend's Jira Integration installed and configured.

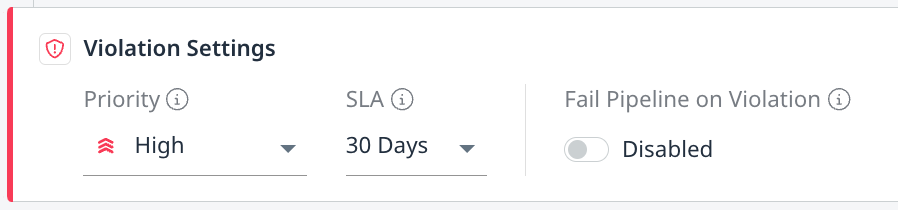

Create Policy Violation	Create a Policy Violation for a triggered completed scan. By default, when a policy violation is created, the build will automatically fail (Error 9 in the Mend CLI).

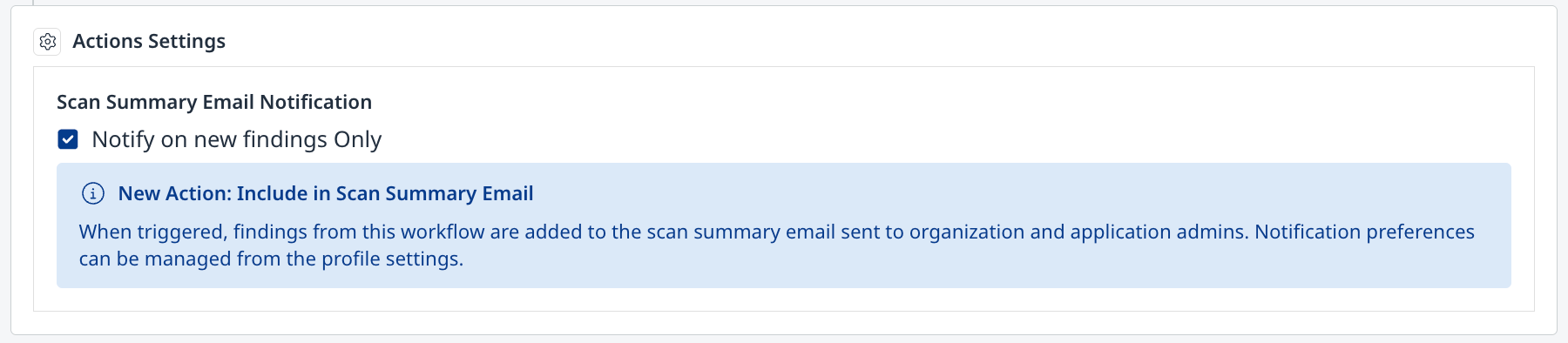

Send Email	Enter recipient(s) address to send an email.
