View the results of your Mend Developer Platform SCA scan in Azure DevOps

Overview

Once your Mend Developer Platform engine scans are completed, there are multiple resources provided to help you review, analyze, and triage your results.

Viewing Details of the Scan

Results can be viewed in the following places:

• The Work Items section in your Azure DevOps Repos project

• The Commits tab shows commit statuses for each commit to the specified base branch

• Mend Developer Platform UI

• The Mend Platform UI

• Via email notifications

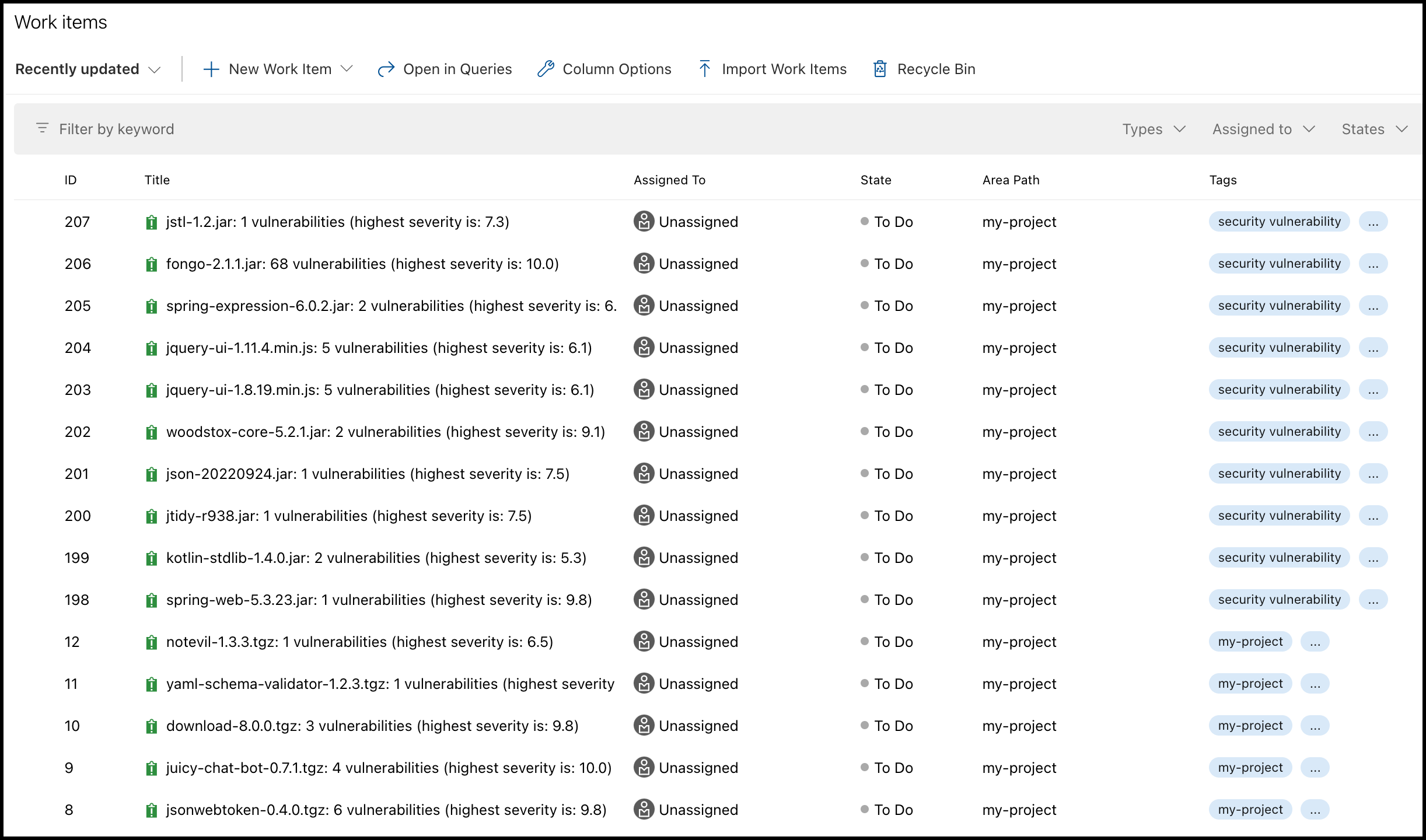

Viewing the Work Items section

Work Items are located under the Boards section in the left panel of Azure DevOps Repos. If you do not see the Boards section, please go to Project settings → Azure DevOps services and enable Boards for this project. Admin rights for this project are required.

If you are performing Pull Requests or push commands via the Web browser, refresh your browser in order to view the issues generated by Mend.
Note: After a valid push command is initiated, it may take a few minutes for the issues to be scanned and displayed.

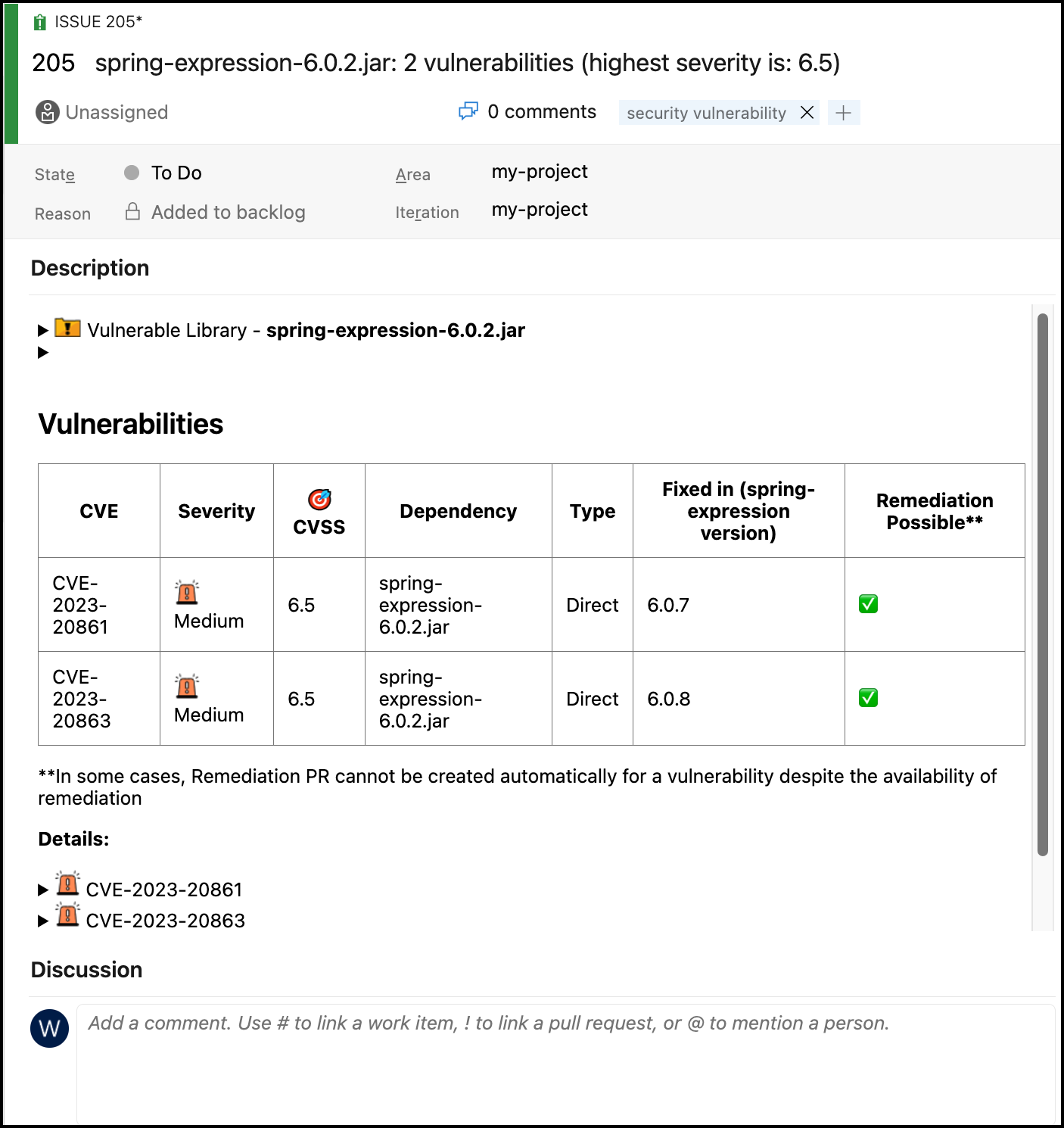

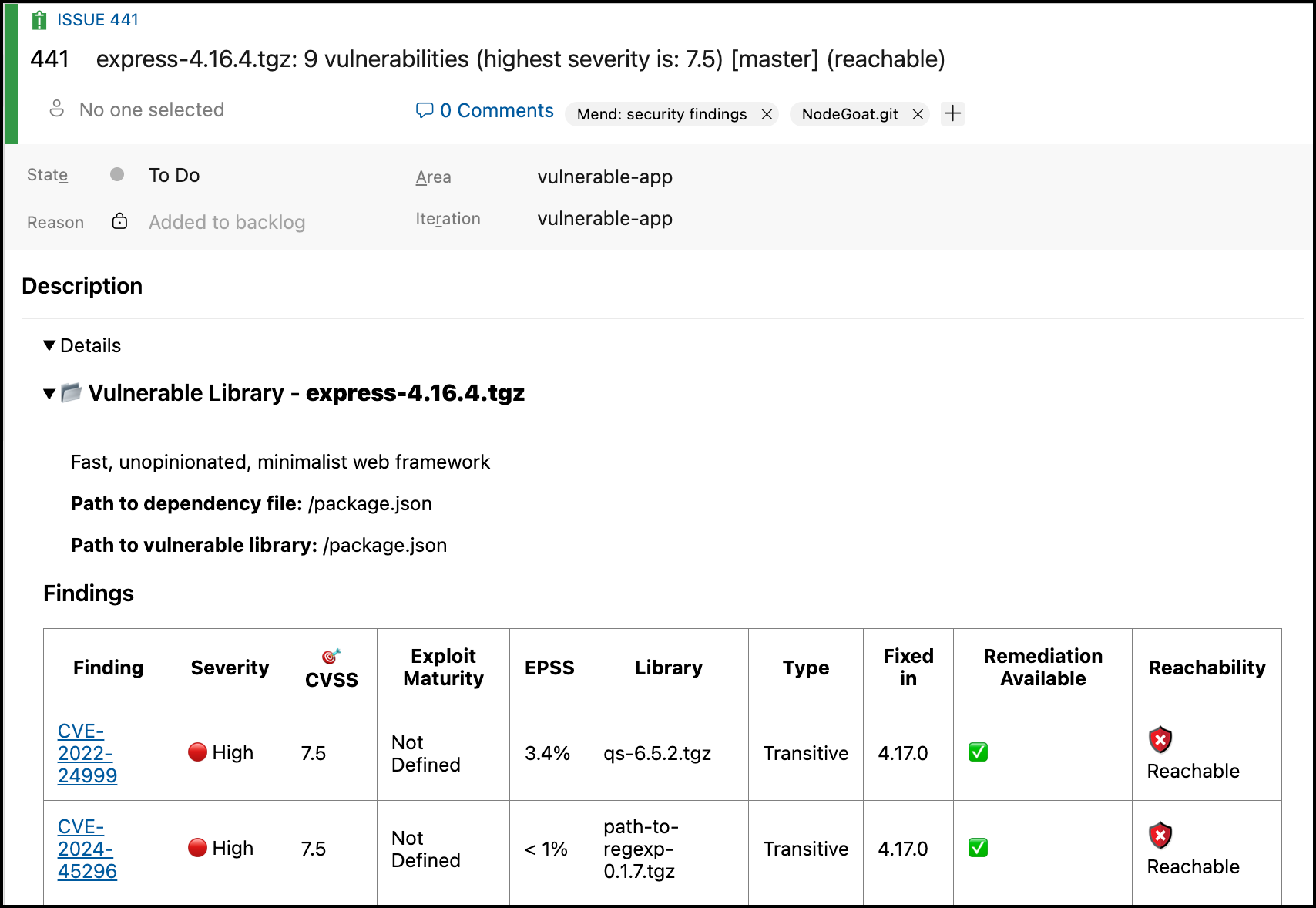

The Work Items section displays all the issues that the Mend Integration detected. As part of your workflow, you have the option to close resolved items. Work Items manually closed will not be re-opened during future Mend scans unless their tag and/or name are changed.

Viewing Mend Security Checks

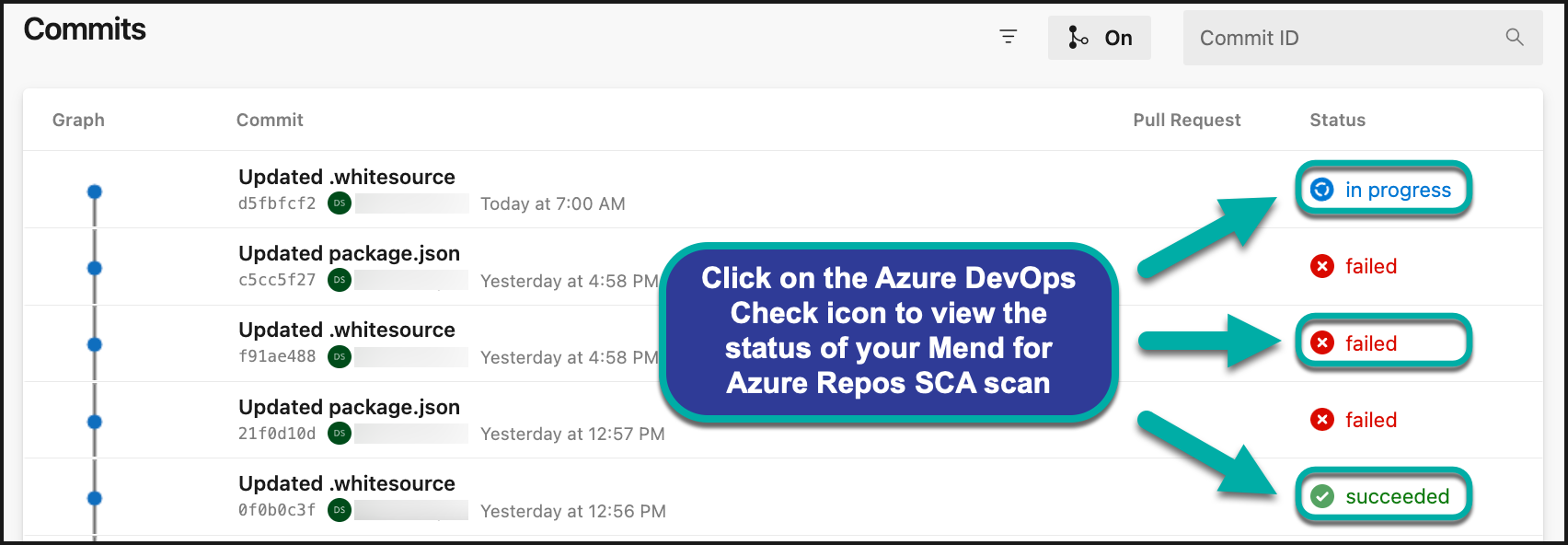

Once Mend Security Check is running, Status Check messages are displayed for each commit. Clicking a specific security check message opens a related head commit with detailed information about found vulnerabilities:

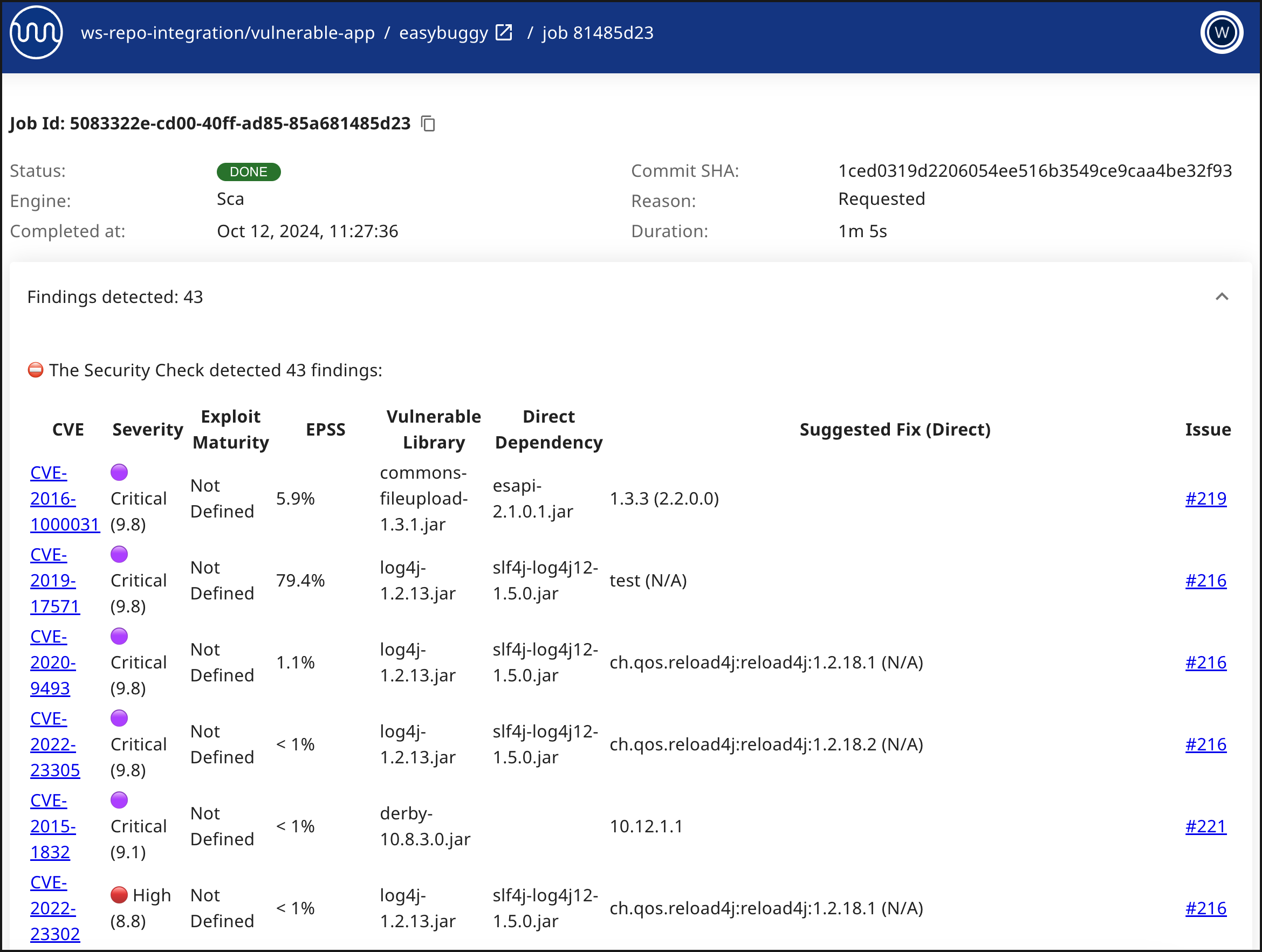

Security Check

The Security Check report displays all the vulnerabilities that were found in descending order according to the severity and CVSS score. The following information is displayed for each vulnerability:

• CVE: A link to the related CVE page for the vulnerability. Displayed in a collapsible format (click the arrow to expand/collapse for more information regarding the vulnerability).

• Severity: Overall score of the severity (High, Medium, Low).

• CVSS Score

• Vulnerable Library

• Suggested Fix

• Work Item: A link to the Mend issue that was generated for the vulnerability.

Types of Indicators

The following status indicators are available as feedback on a head commit:

• Queued: Scan has not begun and is scheduled to begin.

• In progress: Scan is in progress.

• Completed: Scan completed with one of the following conclusions:

  • Success: When the parameter 'vulnerable.check.run.conclusion.level' is set to success, the status of the head commit is always success  A 'Success' status is displayed for the commit even when it fails.

  • Failure: Default for all completed scans. When the parameter 'vulnerable.check.run.conclusion.level' is set to failure (default), the status of a 'failed' head commit is 'failure', and a policy for approving merging pull requests that include failed head commits with another branch in the repository is enforced. Note that a 'failed' status can be caused due to security vulnerabilities or due to an error that occurred during the scan.

  • Neutral: Conclusion occurs when the push command was not valid.

Samples of Check Status Indicators

In Progress

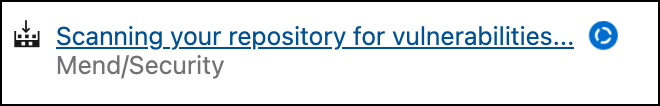

The following is a sample of a 'Running' status, which indicates that the security check is currently scanning the head commit.

Completed with Success Conclusion

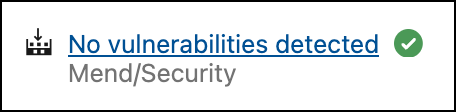

When no vulnerabilities are found and no errors occurred during the scan, Mend will display the following commit status, and a security report indicating that no vulnerabilities were detected.

Completed with Failure Conclusion

All head commits that fail the scan due to the security check detecting vulnerabilities or due to an error that occurred during the scan, will display a failed commit status.
The following screenshot displays a failed indicator for a head commit:

Security Check with Partial Scan results

In case when during the scanning of the repository Mend encountered exceptions thrown by the package managers there will be a message indicating that the scan results might be partial (i.e. Mend was not able to pull all of the dependencies for scanning).

This message is displayed only in the description of the Security Check and does not affect its status. It is also possible to use the strictMode parameter so all the Checks with this message will fail even if no vulnerabilities are detected during the scan.

Viewing Details in the Mend Developer Platform

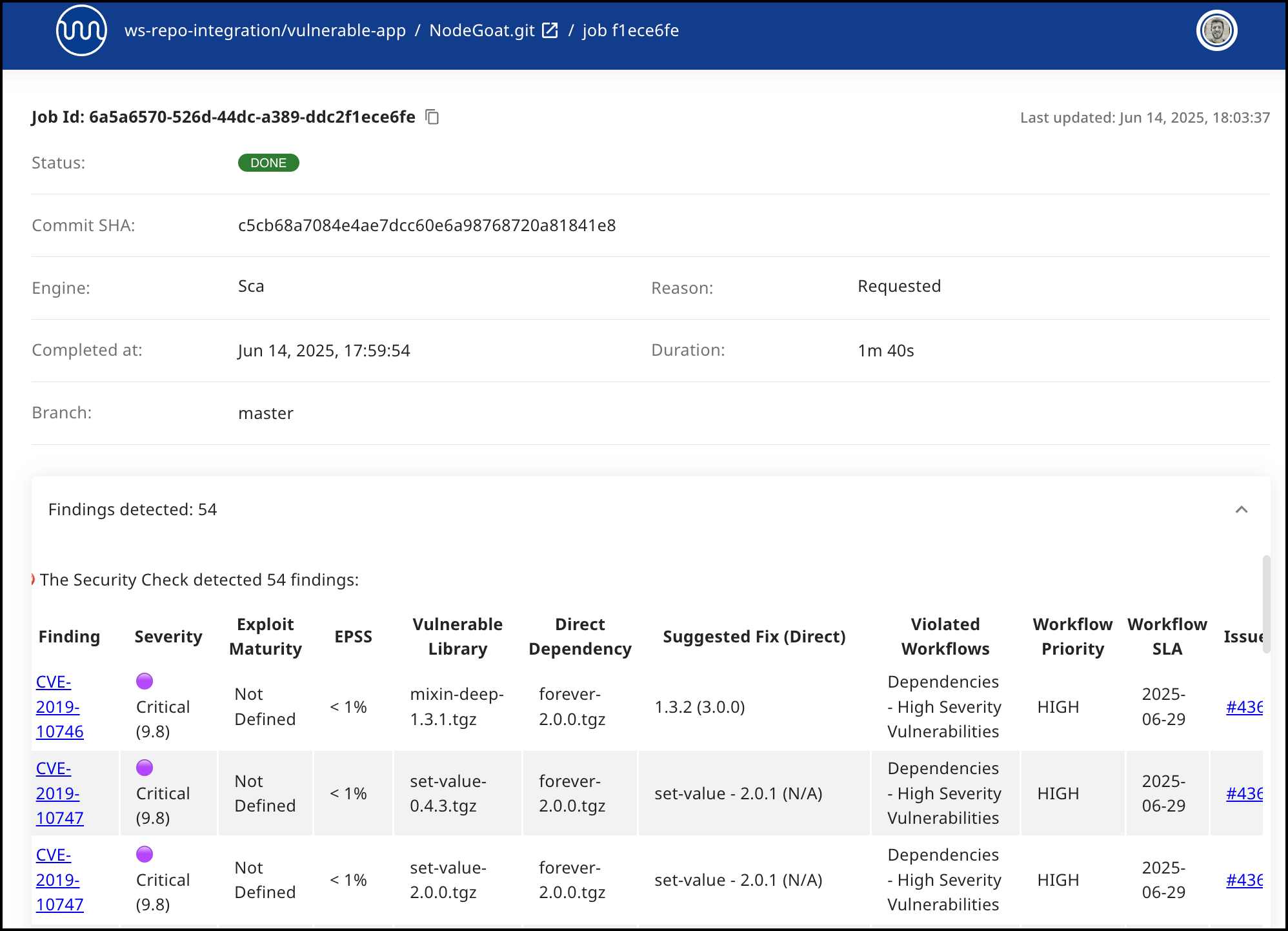

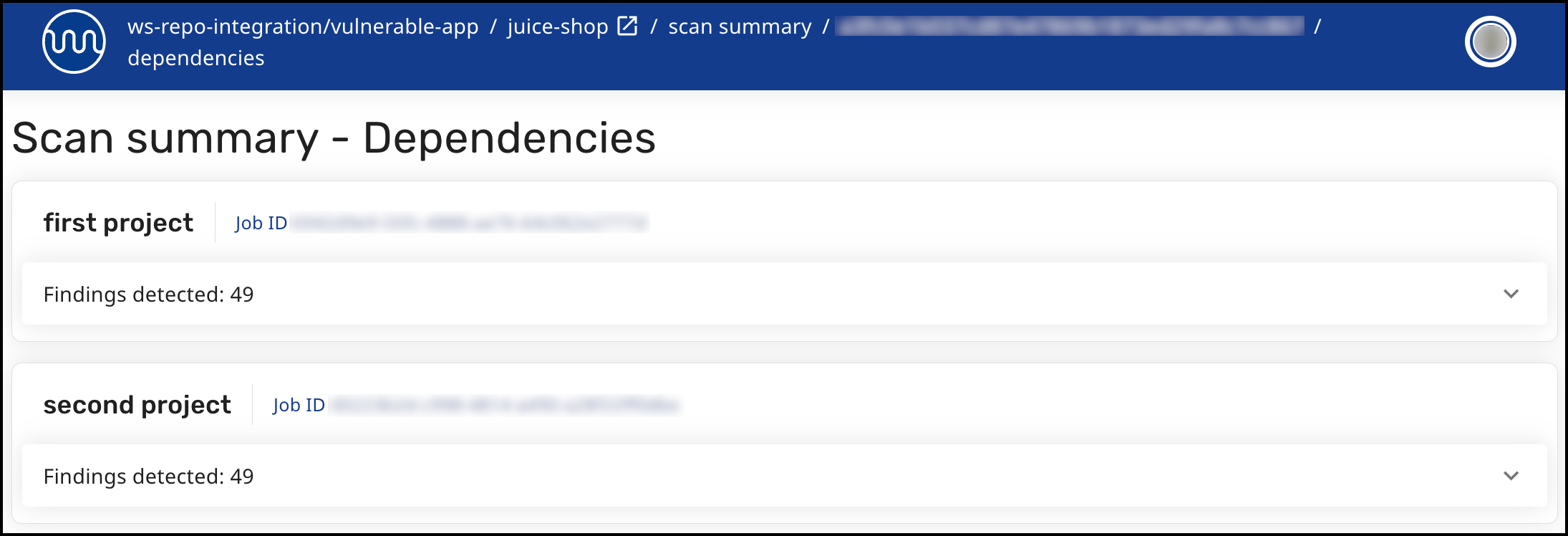

Once an SCA scan job is complete, you can access the Mend Security Check Report and review the detected findings within the Mend Developer Platform, by clicking a specific scan in the Recent jobs view.

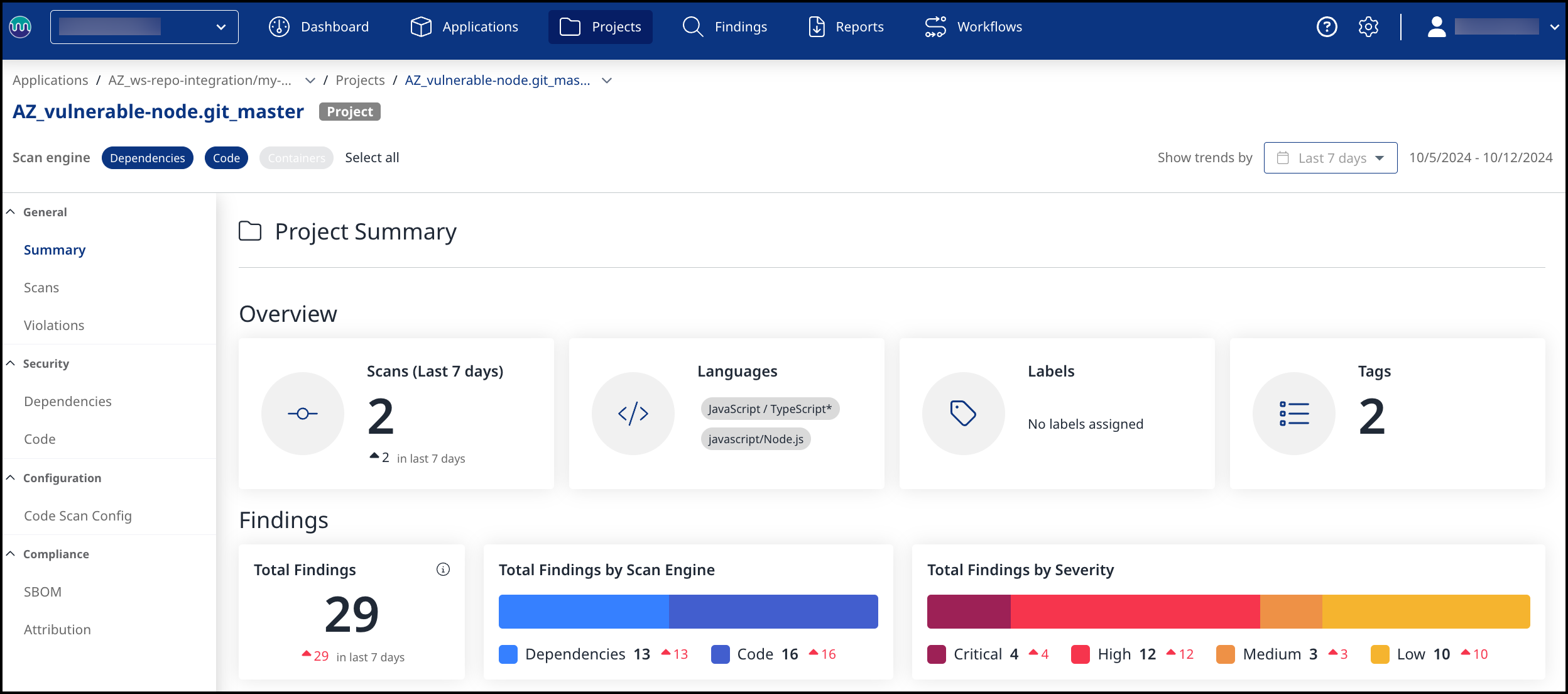

Viewing Details in the Mend Platform

In the Mend Platform, Mend Projects will have the same name as the corresponding Azure DevOps repository, with a "AZ_" prefix. The name of the Mend Platform will be your Azure DevOps Project name preceded by "AZ_".
When a scan is completed for each branch defined in your baseBranches parameter, a Mend project is created for that branch with a “AZ_" prefix. Let’s look at an example:

Azure DevOps Repos hierarchy:

• vulnerable-node repository

  • main branch [default branch]

    • Mend Developer Platform settings for "baseBranches": ["main", "dev"]

  • dev branch

We run a scan on both the main and dev branches. The Mend hierarchy appears as:

Mend Platform hierarchy:

• Application: AZ_vulnerable-node

  • Project: AZ_vulnerable-node_main

  • Project: AZ_vulnerable-node_dev

Within the Mend Application, You can filter the results by engine type:
(1) Dependencies -> Open-Source Security
(2) Code -> Code Security
