Configure SCA Reachability for GitLab

Overview

As part of our commitment to reducing developers' security burden, we are excited to introduce Mend.io's innovative differentiation - Reachability Analysis. With Mend Reachability, developers can easily identify and address reachable vulnerabilities in their GitLab repositories, streamlining the security remediation process.

Mend Reachability determines the level of security risk by examining and analyzing the paths and dependencies within the codebase to determine which vulnerabilities are actually reachable. By focusing on these vulnerabilities, developers can prioritize their efforts and efficiently address the most critical security issues.

Use case for Mend Reachability

One of the valuable use cases of reachability analysis is its integration into the repository scan process. By including a dedicated "reachability scan" step, Mend enhances the depth of the scan to provide vital insights into the actual exploitability of listed vulnerabilities.

While the scan may take slightly longer, the results become enriched with reachability information. This enrichment is showcased in the scan report through clear visual indications in the user interface that will help you identify whether each listed vulnerability is reachable or not and assess each vulnerability's effectiveness.

Getting it done

Prerequisites before getting started with Mend Reachability

• Ensure you have performed the steps described in the Installation Prerequisites article.

• Ensure you have performed the steps described in Installing Mend for GitLab.

Configure Reachability

The .whitesource file configures Mend for GitLab SCA scans. To set up your configuration file for SCA scans, see the Parameters section provided in this documentation. Below is an example of fine-tuning the Mend Reachability scan within a repository’s .whitesource file:

{
  "scanSettings": {
    "configMode": "AUTO",
    "enableReachability": true
  },
  "checkRunSettings": {
    "strictMode": "warning"
  }

Run the Mend Reachability scan

After configuring the .whitesource file mentioned in the configuration section above, the reachability analysis feature will automatically be enabled for your GitLab repository once you merge the onboarding MR into your default branch.

With Mend SCA check runs, your code commits trigger analysis for the following scenarios:

• Changes to packages manifest files

• Addition or deletion of supported source files

When you enable reachability analysis, every Mend SCA check run will include this feature and be triggered based on the following scenarios:

• Changes to packages manifest files (similar to regular SCA check runs)

• Addition or deletion of supported source files (similar to regular SCA check runs)

• Changes to existing supported source files will be analyzed after a specific elapsed time interval (a new feature introduced for reachability analysis)

For more details, please refer to Using Mend for GitLab.

Review the results of Mend Reachability scan

Once your Mend Reachability scan is completed, multiple resources are provided to help you review, analyze, and triage your results.

GitLab Check

Once the Mend for GitLab SCA scan is completed, the Mend checks are updated with the results. The Mend Security Check includes a Scan token, which you can provide to Mend Support for troubleshooting.

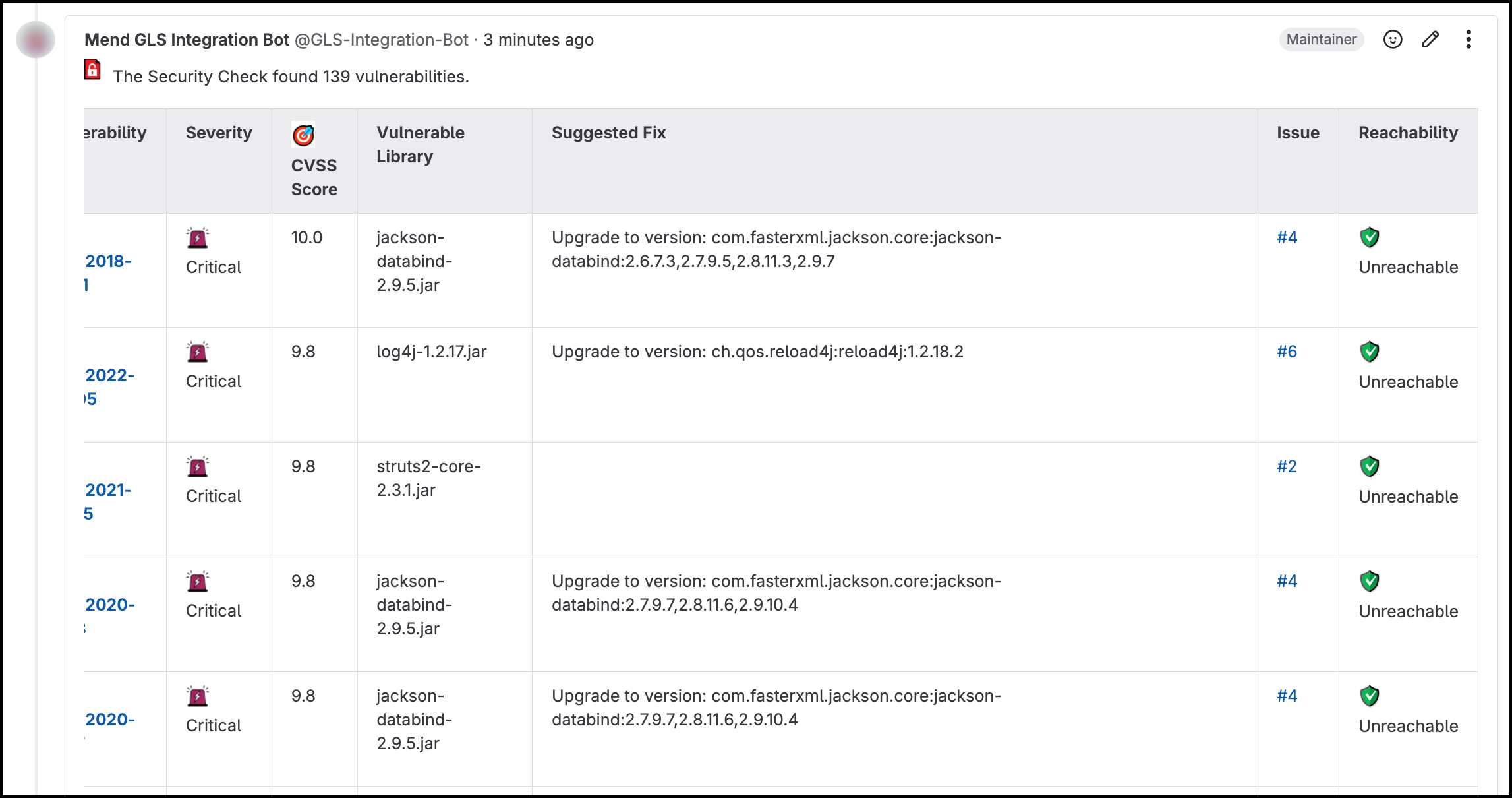

Mend Security Check

The Security Report within the Mend Security Check populates within an overview of vulnerability findings within the commit:

• Vulnerability: The CVE ID, linking to the CVE page on Mend.io’s vulnerability database site.

• Severity: Level of severity of the vulnerability (Critical, High, Medium, Low)

• CVSS Score: CVSS Score (CVSS 3).

• Reachability: A Reachable / Unreachable indicator will be specified, depending on the reachability status of each vulnerability.

• Vulnerable Library: Name of the open-source component impacted by the vulnerability.

• Suggested Fix: Fix suggestion to resolve the vulnerability.

• Issue: URL to the related GitLab Issue that was created for the policy violation.

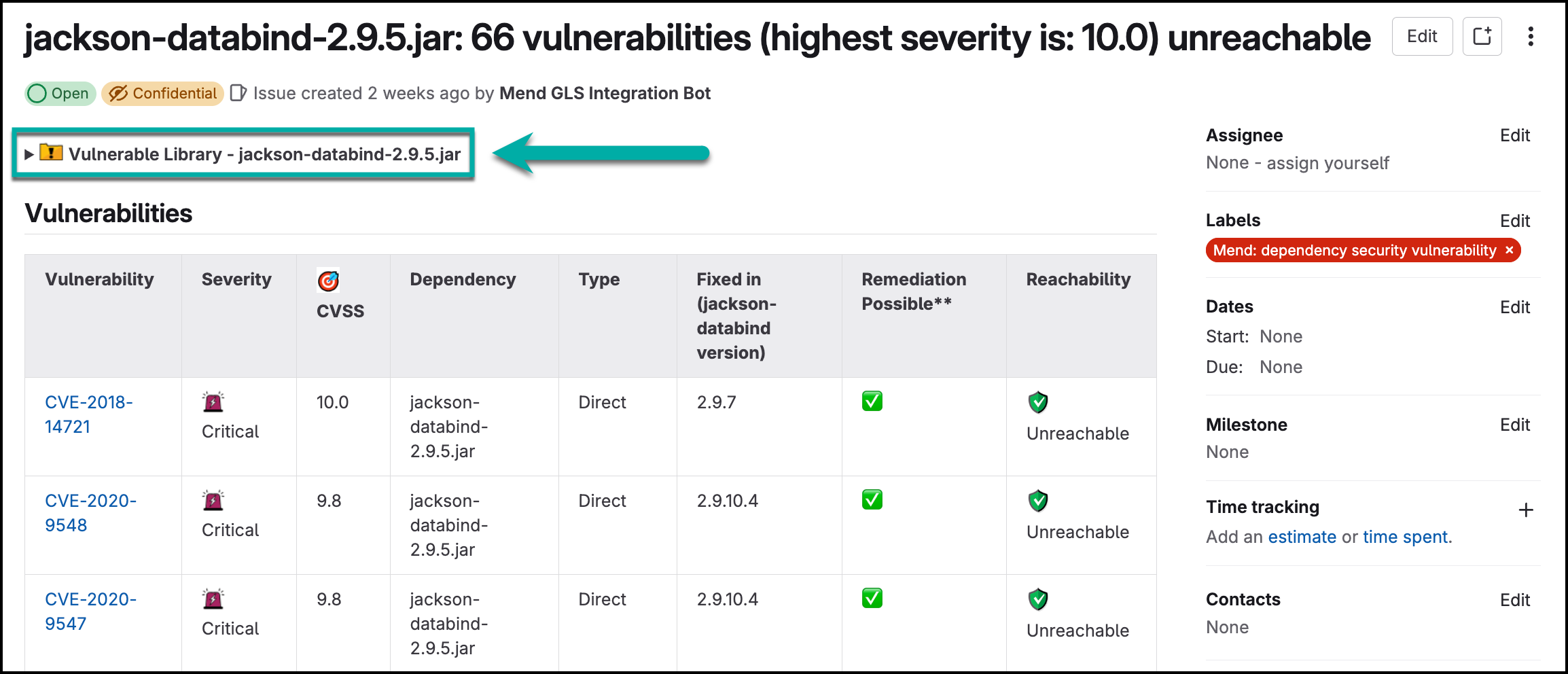

GitLab Issue

Once the Mend Reachability for GitLab scan is completed, by default, the Mend SCA Check creates a GitLab issue for the findings of each SCA component, if any were discovered.

• Vulnerable Library: Name of the vulnerable dependency file. Click on the dropdown arrow for more information. This information includes the path to the dependency file and the path of the library. If the path is of a transitive dependency, then only the path information of the root library is displayed. This section also contains a commit link, which includes the path to the commit link where the vulnerability was found.




• Vulnerabilities table:

  • Vulnerability: The CVE ID, linking to the CVE page on Mend.io’s vulnerability database site.

  • Severity: Level of severity of the vulnerability (Critical, High, Medium, Low)

  • CVSS: CVSS Score (CVSS 3).

  • Dependency: Name of the dependency file.

  • Type: The type of dependency (Direct or Transitive).

  • Fixed in: Version of the dependency that fixes the vulnerability.

  • Remediation Available: If remediation is available (via Mend Remediate), there will be a green checkmark icon. If remediation is not available, there will be a red “X” icon.

  • Reachability: Once the Reachability scan is enabled, if the vulnerability is reachable, this will be indicated by a “Reachable” status.

• Details: List of CVEs found by the SCA scan on the open-source component. Click on each CVE’s dropdown arrow for a deep-dive into the CVE vulnerability and how it impacts the open-source component:

Caching

The caching mechanism aims to improve the performance of Reachability over time, resulting in shorter Reachability scan times.

For each library (e.g., .jar file), Mend generates a corresponding dot file graph, which represents its internal file/class level dependencies. The first time a library is encountered, Mend calculates its graph on the fly by language specific file/class graph builders, and then uploads it to the S3 or S3 compatible global cache for re-use in subsequent scans.

Note that the data stay private & secure as they are hosted on your company’s own cache.

To enable it, configure the specified environment variables or scm-scanner properties file parameters:

REACHABILITY_AWS_S3_ENDPOINT (optional, default=https://s3.amazonaws.com)
REACHABILITY_AWS_S3_ACCESS_KEY (required, unless using IAM role-based credentials)
REACHABILITY_AWS_S3_SECRET_KEY (required, unless using IAM role-based credentials)
REACHABILITY_AWS_S3_REGION (optional, default=us-east-1)
REACHABILITY_AWS_S3_BUCKET (optional, default=reachability)
REACHABILITY_AWS_S3_KEY_PREFIX (optional, default=dot-file-cache)

Reference

Parameters

Mend Reachability Settings (scanSettings)

Repository-level Parameters

Note that setting this parameter to a low number may cause a higher load on your servers, due to higher frequency of Mend Reachability scans. This may result in increased costs when using hosted cloud services.

Supported Languages

Supported versions of each language or package manager are listed here.
