Configure SCA Reachability for GitHub Enterprise

Overview

As part of our commitment to reducing developers' security burden, we are excited to introduce Mend's innovative differentiation - Reachability Analysis. With Mend Reachability, developers can easily identify and address reachable vulnerabilities in their GitHub repositories, streamlining the security remediation process.

Mend Reachability determines the level of security risk by examining and analyzing the paths and dependencies within the codebase to determine which vulnerabilities are actually reachable. By focusing on these vulnerabilities, developers can prioritize their efforts and efficiently address the most critical security issues.

Use case for Mend Reachability

One of the valuable use cases of reachability analysis is its integration into the repository scan process. By including a dedicated "reachability scan" step, Mend enhances the depth of the scan to provide vital insights into the actual exploitability of listed vulnerabilities.

While the scan may take slightly longer, the results become enriched with reachability information. This enrichment is showcased in the scan report through clear visual indications in the user interface that will help you identify whether each listed vulnerability is reachable or not and assess each vulnerability's effectiveness.

Getting it done

Prerequisites before getting started with Mend Reachability

• Ensure you have performed the steps described in Mend for GitHub Enterprise installation procedures

• Mend Reachability scans are currently supported for Java and JavaScript GitHub repositories

Note: Reachability for Python in the GitHub Enterprise integration can be enabled on demand. It is available starting from version 24.10.1.1 of the integration.

Configure Mend Reachability

The .whitesource file configures Mend for GitHub Enterprise SCA scans. To set up your configuration file for SCA scans, see the Parameters section provided in this documentation. Below is an example of fine-tuning the Mend Reachability scan within a repository’s .whitesource file:

{
  "scanSettings": {
    "configMode": "AUTO",
    "enableReachability": true
  },
  "checkRunSettings": {
    "strictMode": "warning"
  }

To learn more about the SCA-supported languages, configuration, and parameters, visit our Mend for GitHub Enterprise documentation.

Run the Mend Reachability scan

After configuring the .whitesource file mentioned in the configuration section above, the reachability analysis feature will automatically be enabled for your GitHub repository once you merge the onboarding PR into your default branch.

With Mend SCA check runs, your code commits trigger analysis for the following scenarios:

• Changes to packages manifest files

• Addition or deletion of supported source files

When you enable reachability analysis, every Mend SCA check run will include this feature and be triggered based on the following scenarios:

• Changes to packages manifest files (similar to regular SCA check runs)

• Addition or deletion of supported source files (similar to regular SCA check runs)

• Changes to existing supported source files will be analyzed after a specific elapsed time interval (a new feature introduced for reachability analysis)

For more details, please refer to how to initiate and run a scan using Mend for GitHub Enterprise.

Review the results of Mend Reachability scan

Once your Mend Reachability scan is completed, multiple resources are provided to help you review, analyze, and triage your results.

GitHub Check

Once the Mend for GitHub Enterprise SCA scan is completed, the Mend checks are updated with the results. The Mend Security Check includes a Scan token, which you can provide to Mend Support for troubleshooting.

Mend Security Check

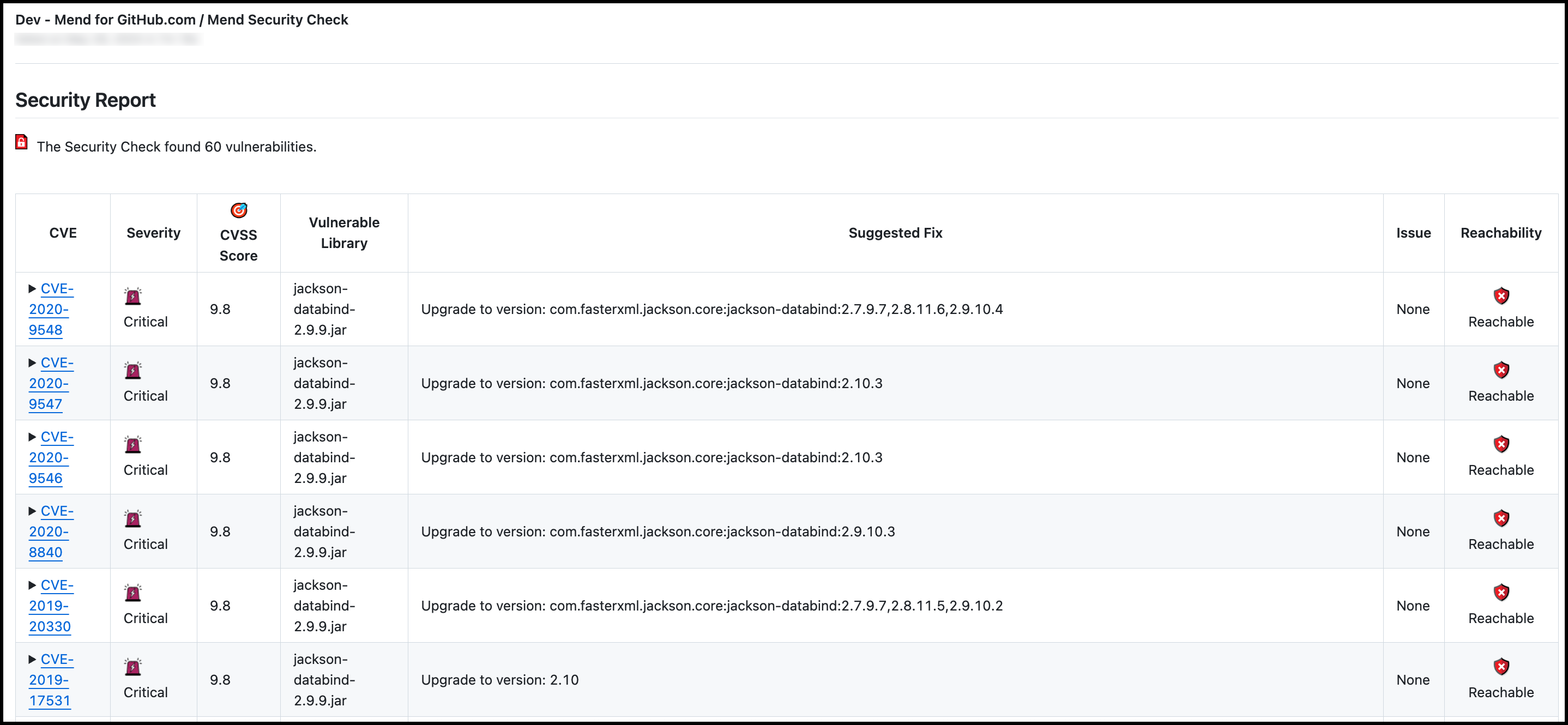

The Security Report within Mend Security Check populates within an overview of vulnerability findings within the commit:

• CVE: CVE ID of the vulnerability. This links to CVE’s page on Mend’s official database site.

• Severity: Level of severity of the vulnerability (Critical, High, Medium, Low)

• CVSS Score: CVSS Score (CVSS 3).

• Vulnerable Library: Name of the open-source component impacted by the vulnerability.

• Suggested Fix: Fix suggestion to resolve the vulnerability.

• Issue: URL to the related GitHub Issue that was created for the policy violation.

• Reachability: A Reachable / Unreachable indicator will be specified, depending on the reachability status of each vulnerability.

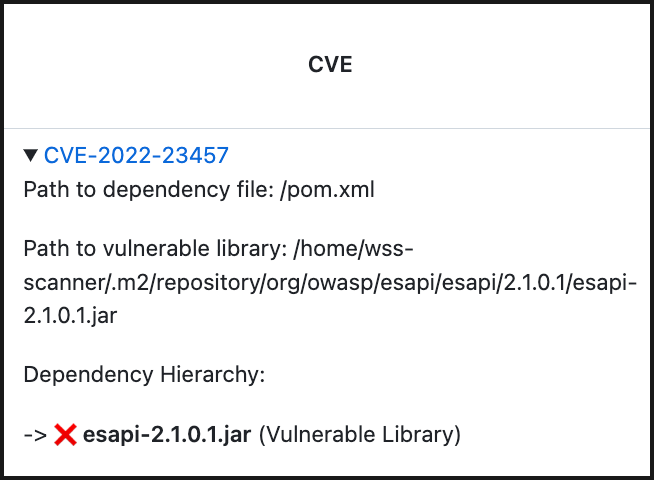

You can also click the dropdown arrow next to each CVE for more details:

GitHub Issue

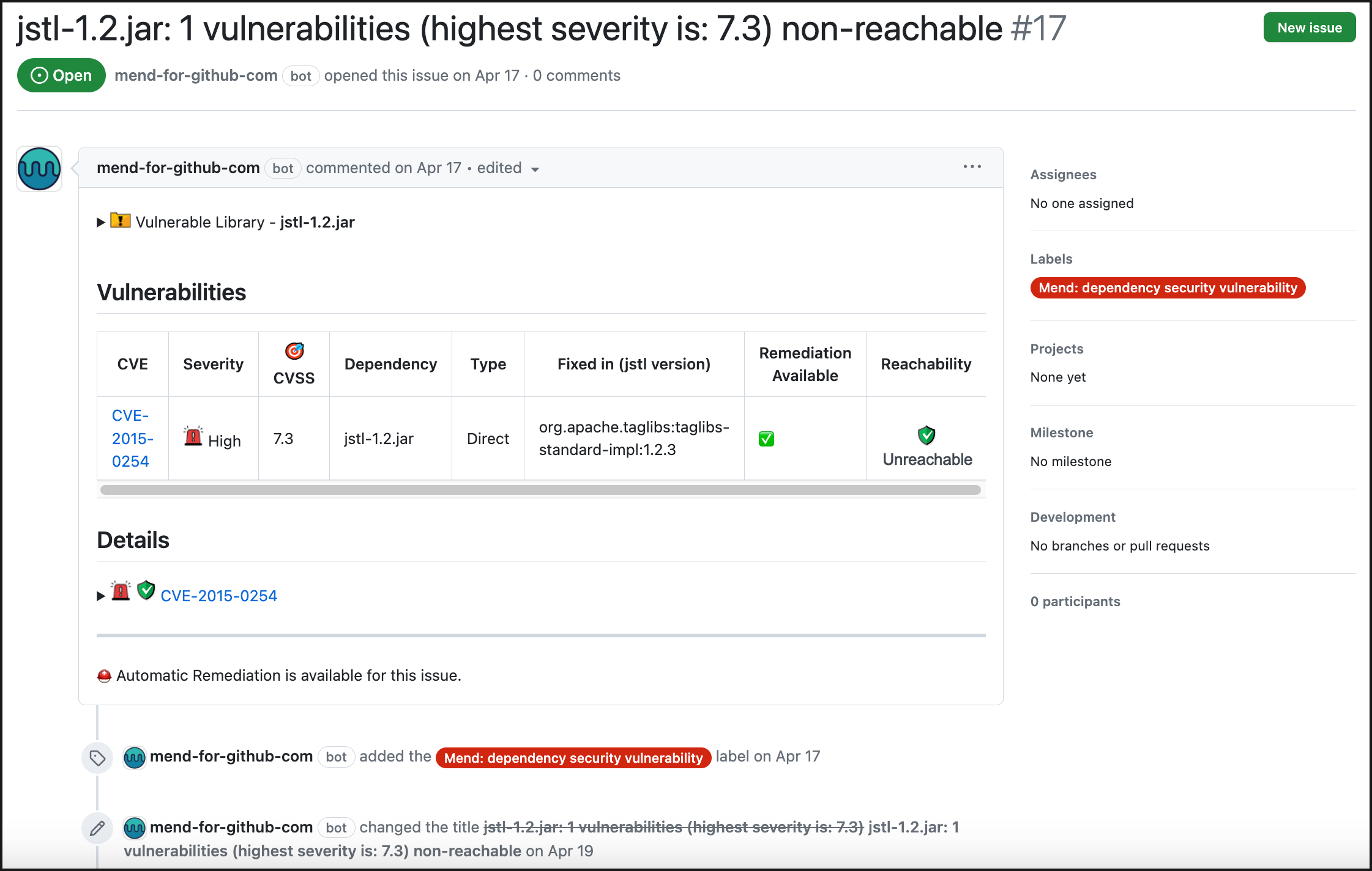

Once the Mend Reachability for GitHub Enterprise scan is completed, by default, the Mend SCA Check creates a GitHub issue for the findings of each SCA component, if any were discovered.

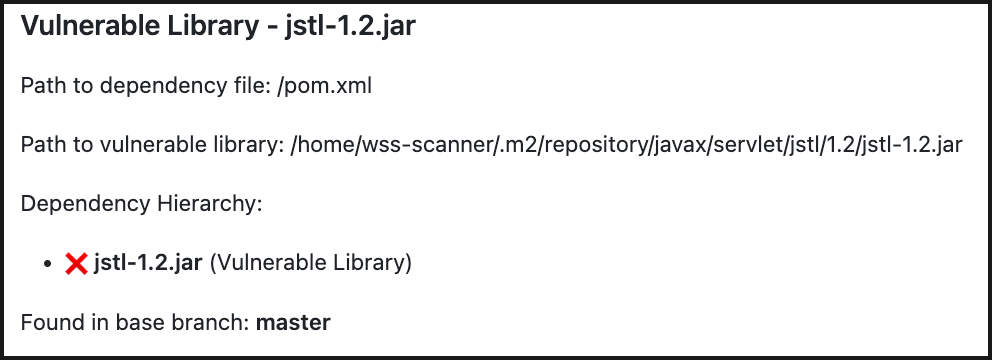

• Vulnerable Library: Name of the vulnerable dependency file. Click on the dropdown arrow for more information. This information includes the path to the dependency file and the path of the library. If the path is of a transitive dependency, then only the path information of the root library is displayed. This section also contains a commit link, which includes the path to the commit link where the vulnerability was found.

• Vulnerabilities table:

  • CVE: CVE ID of the vulnerability. This links to CVE’s page on Mend’s official database site.

  • Severity: Level of severity of the vulnerability (Critical, High, Medium, Low)

  • CVSS: CVSS Score (CVSS 3).

  • Dependency: Name of the dependency file.

  • Type: The type of dependency (Direct or Transitive).

  • Fixed in: Version of the dependency that fixes the vulnerability.

  • Remediation Available: If remediation is available (via Mend Remediate), there will be a green checkmark icon. If remediation is not available, there will be a red “X” icon.

  • Reachability: Once the Reachability scan is enabled, if the vulnerability is reachable, this will be indicated by a “Reachable” status.

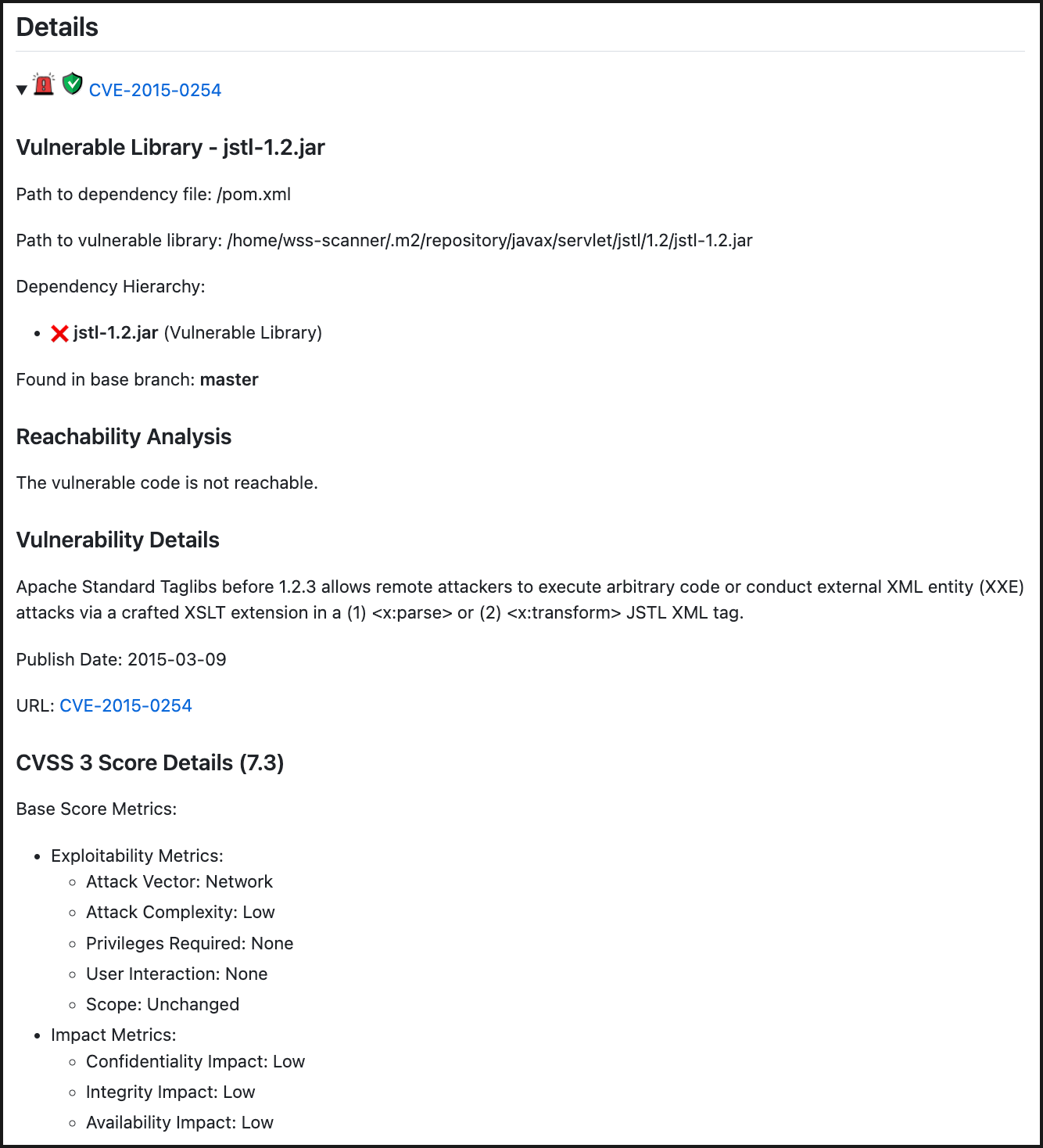

• Details: List of CVEs found by the SCA scan on the open-source component. Click on each CVE’s dropdown arrow for a deep-dive into the CVE vulnerability and how it impacts the open-source component:

Caching

The caching mechanism aims to improve the performance of Reachability over time, resulting in shorter Reachability scan times.

For each library (e.g. jar file), Mend generates a corresponding dot file graph, which represents its internal file/class level dependencies. The first time a library is encountered, Mend calculates its graph on the fly by language specific file/class graph builders, and then uploads it to the S3 global cache for re-use in subsequent scans.

Note that the data stay private & secure as they are hosted on your company’s own cache.

To enable it, configure the specified environment variables or scm-scanner properties file parameters:

REACHABILITY_AWS_S3_ACCESS_KEY
REACHABILITY_AWS_S3_SECRET_KEY
REACHABILITY_AWS_S3_BUCKET
REACHABILITY_AWS_S3_KEY_PREFIX
REACHABILITY_AWS_S3_REGION

If you have IAM role-based credentials configured instead of Secret token-based credentials, the first 2 parameters are optional:

REACHABILITY_AWS_S3_ACCESS_KEY (optional)
REACHABILITY_AWS_S3_SECRET_KEY (optional)
REACHABILITY_AWS_S3_BUCKET
REACHABILITY_AWS_S3_KEY_PREFIX
REACHABILITY_AWS_S3_REGION

SCM-scanner properties file parameters (optional):

reachability.aws.s3.access.key
reachability.aws.s3.secret.key
reachability.aws.s3.bucket
reachability.aws.s3.key.prefix
reachability.aws.s3.region

Example:

REACHABILITY_AWS_S3_ACCESS_KEY=****
REACHABILITY_AWS_S3_SECRET_KEY=****
REACHABILITY_AWS_S3_BUCKET=reachability
REACHABILITY_AWS_S3_KEY_PREFIX=dot-file-cache
REACHABILITY_AWS_S3_REGION=us-east-1

Reference

Parameters

Note: For the full set of Mend for GitHub Enterprise configurations across our solutions, visit the main Mend for GitHub Enterprise documentation.

Mend Reachability Settings (scanSettings)

Repository-level Parameters

Note that setting this parameter to a low number may cause a higher load on your servers, due to higher frequency of Mend Reachability scans. This may result in increased costs when using hosted cloud services.

Controller-level Parameters

Check Run Settings (checkRunSettings)

Parameter	Type	Description
strictMode	String	Optional. Default Value: none. Controls the messaging and status of security and license checks in the case of partial scan results (i.e. Mend Scanner experienced issues pulling some of the project’s dependencies during the scan). The available parameter values are: none - When a scan concludes with partial results: No message is shown in the check description. The check status is not affected. warning - When a scan concludes with partial results: A message alerting to the partial results is included in the check description. When possible, the message will also include detailed information and error logs on the cause of the partial results. Partial result details include warning and error messages in the check run. Check run does not fail based on warning or error messages. A project tag "scanError" is not populated with package managers' names. If there was a tag previously → it is removed with the next scan job failure - When a scan concludes with partial results: A message alerting to the partial results is included in the check description. When possible, the message will also include detailed information and error logs on the cause of the partial results. Partial result details include warning and error messages in the check run. Check run fails only on error messages, not on warnings. A project tag "scanError" includes only error-level package managers. failOnWarning - When a scan concludes with partial results: Partial result details include warning and error messages in the check run. Check run fails on both warning and error messages. A project tag "scanError" lists package managers with warnings or errors. Note: For strictMode to work, the vulnerableCheckRunConclusionLevel and licenseCheckRunConclusionLevel parameters must be set to failure or not used.
strictModeInfo	Boolean	Optional. Default Value: false. Controls the inclusion of INFO logs in the Scan Details report. When set to true, this allows info-level messages in all strict modes except none.

Supported Languages
