Remediation Strategies in Mend SCA

Overview

Mend.io offers two remediation strategies for your organization’s vulnerable dependencies:

1. Least Vulnerable Package (default) - recommends the latest minor version of a library that offers the most impactful risk reduction.

2. First Fix - recommends the earliest version of a package that resolves all known vulnerabilities.

The Remediation Strategy is an org-level strategy which affects the dependency fix recommendations you will get throughout the organization (regardless of the context, i.e., Application/Project). Mend.io recommends using Least Vulnerable Package (LVP), however you are given the option to utilize the First Fix strategy instead. This article aims to help you understand the difference between the two as well as provide the step-by-step to implement them.

Least Vulnerable Package (LVP) automatically suggests the newest, least vulnerable library version as the optimal upgrade path for a vulnerable library.

Supported Languages and Coverage

Java

• Supported: Maven Central packages.

  • Coverage includes Maven, Gradle.

JavaScript

• Supported: npm packages.

  • Coverage includes npm, Yarn, pnpm, and Lerna.

  • Exception: Packages from CDN.js are not covered.

• Not Supported: Bower package manager.

Python

• Supported: PyPI packages.

  • Coverage includes pip, pipenv, and poetry.

• Not Supported: Conda.

Least Vulnerable Package (LVP)

How is it calculated?

Mend.io’s approach towards remediation with LVP is to establish a fix from a dependency tree perspective that will provide the most meaningful risk reduction. This risk score is calculated using the vulnerabilities' CVSS 3.X scores from each version’s dependency tree via the sum of the formulas for each severity below:

Icon	Severity & CVSS Score	Formula
	(C) Critical (9.0-10.0)	10,000 x CVSS Score
	(H) High (7.0-8.9)	1,000 x CVSS Score
	(M) Medium (4.0-6.9)	10 x CVSS Score
	(L) Low (0.1-3.9)	1 x CVSS Score

Example

Let’s take a look at an example. For your application, you decide to add the npm library, express v3.0.0, and then run an SCA scan. Express v3.0.0 has a total of 17 transitive dependencies. Let’s review its dependency tree and vulnerabilities:

express-3.0.0.tgz (1 Medium)
	→ commander-0.6.1.tgz
	→ connect-2.6.0.tgz (5 Medium)
		- bytes-0.1.0.tgz
		- formidable-1.0.11.tgz
		- pause-0.0.1.tgz
		- qs-0.5.1.tgz (3 High, 1 Medium)
		- send-0.0.4.tgz (1 High, 1 Medium)
	→ cookie-0.0.4.tgz
	→ crc-0.2.0.tgz
	→ debug-4.3.4.tgz
		- ms-2.1.2.tgz
	→ fresh-0.1.0.tgz (1 High)
	→ methods-0.0.1.tgz
	→ mkdirp-0.3.3.tgz
	→ range-parser-0.0.4.tgz
	→ send-0.1.0.tgz (1 High, 1 Medium)
		- mime-1.2.6.tgz (1 High)

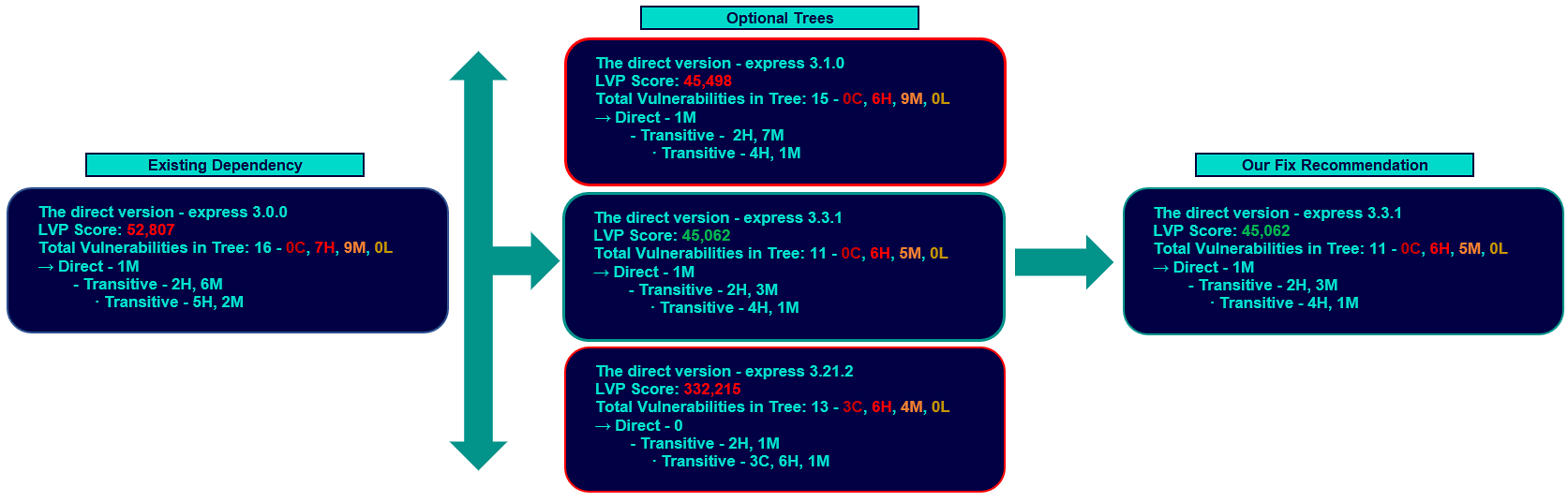

Adding up, express v3.0.0’s dependency tree has a total of 16 vulnerabilities, 7 High and 9 Medium. We then compare all other minor 3.x versions of express against v3.0.0 using our risk-scoring equation to determine the least vulnerable dependency tree. Let’s look at a visual of the scoring and decision-making below:

This results in express v3.3.1 being identified as the version embodying the greatest risk reduction and is therefore the suggested remediation, with a total of 11 vulnerabilities. LVP also displays the vulnerability counts of the current version in your application/project inventory (express v3.0.0) and the latest available 3.x minor version (express v3.21.2). In this example, updating to v3.21.2 was not recommended as it has a numerically higher LVP score, with more severe vulnerabilities than both the current version and v3.3.1.

Before You Begin

• LVP is available in the Mend AppSec Platform UI as well as the GitHub repo integrations.

• LVP currently supports npm, Maven and Python..

• LVP evaluates minor versions only.

LVP in the Mend Platform UI

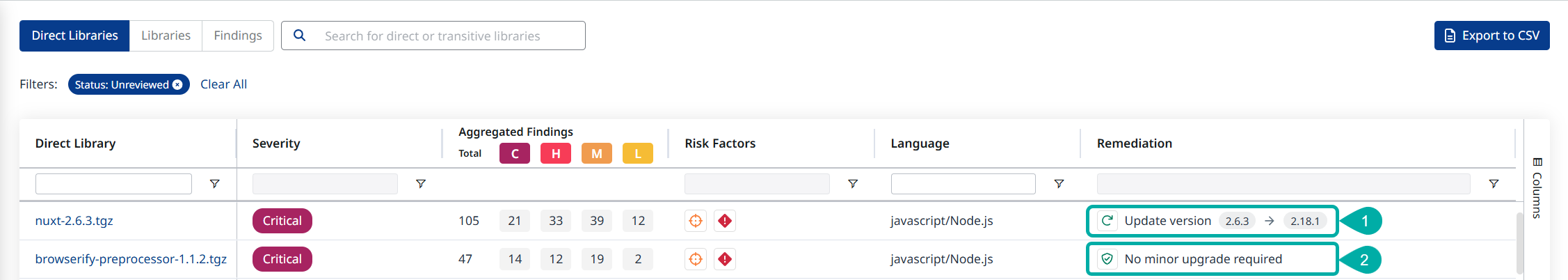

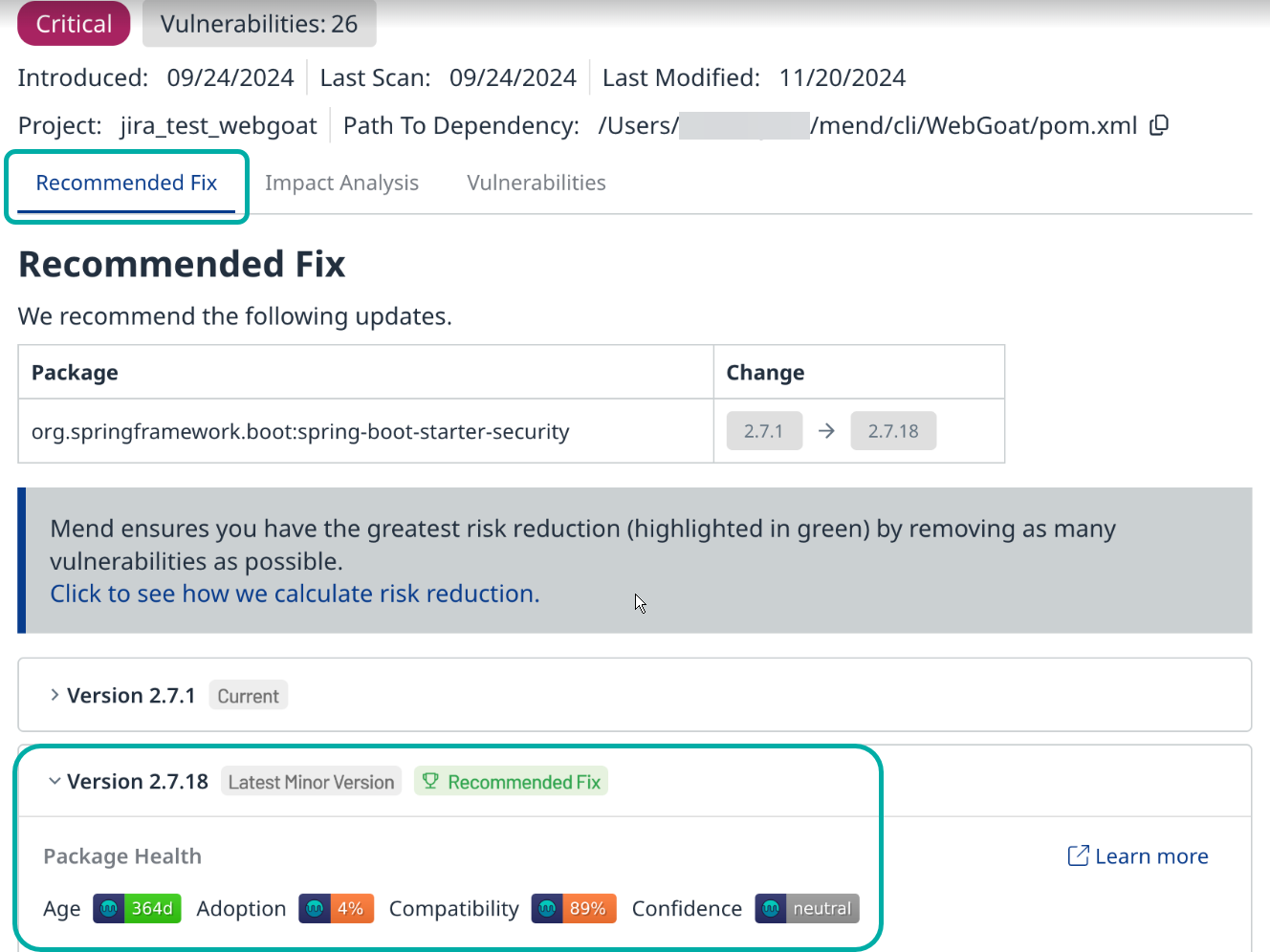

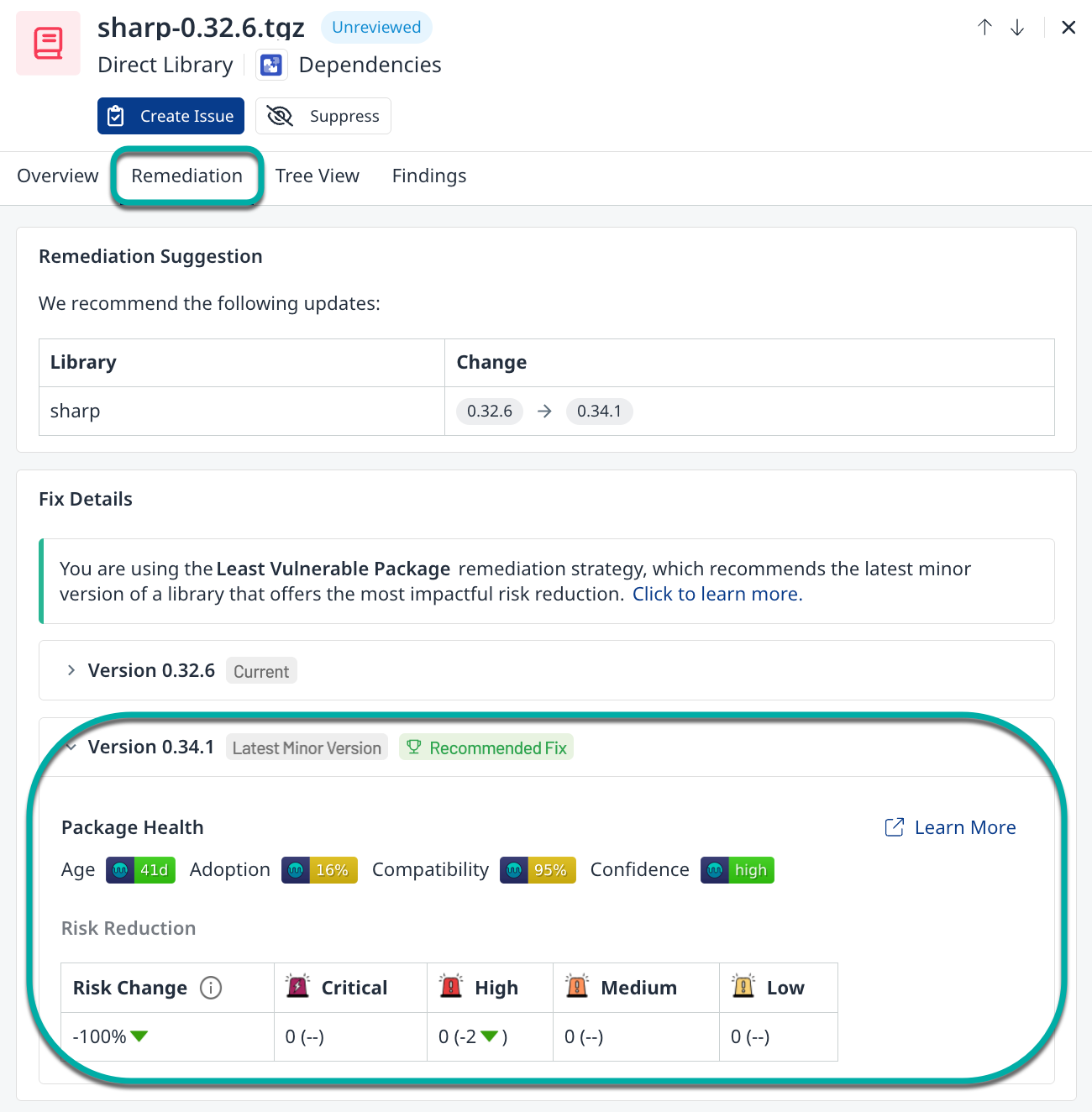

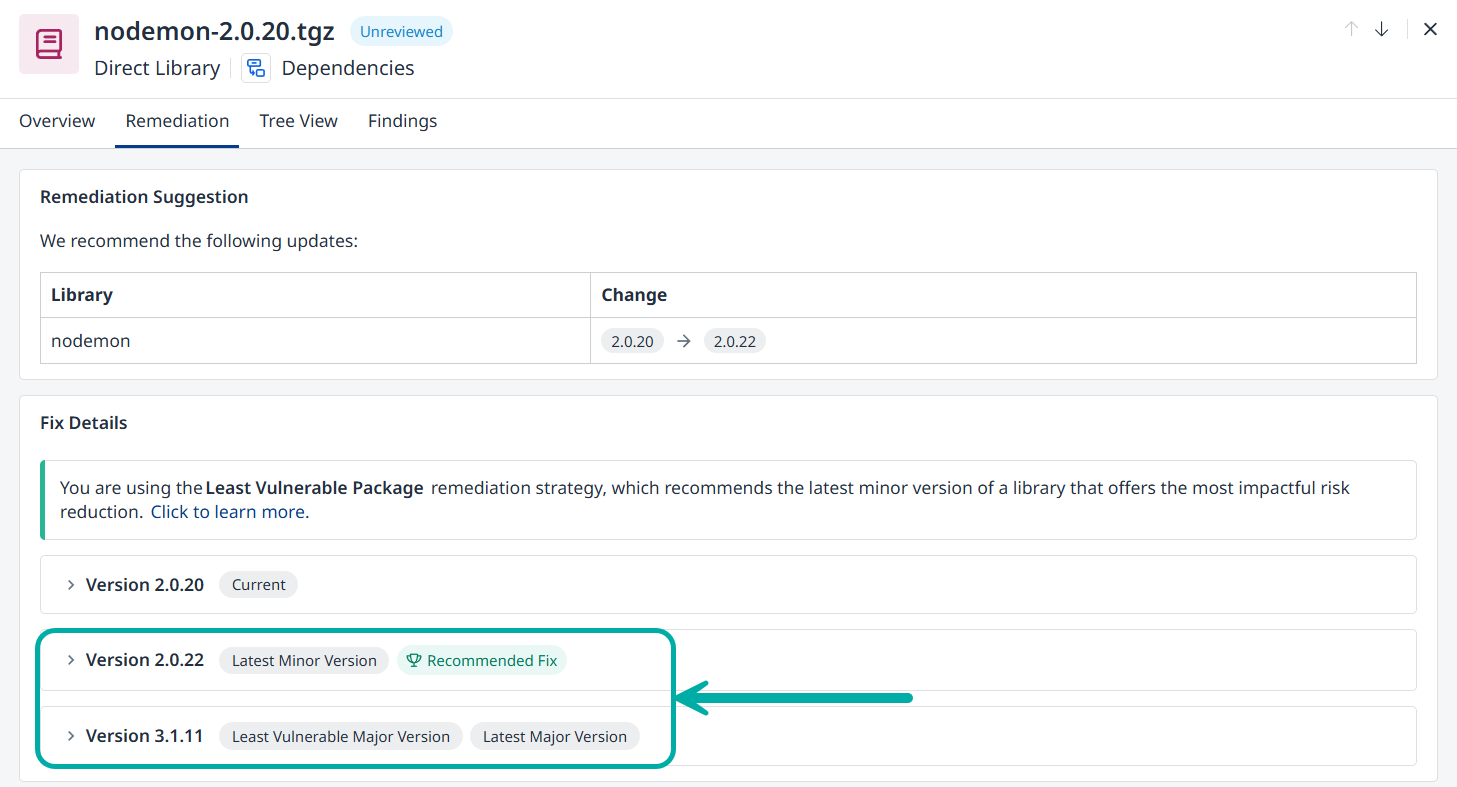

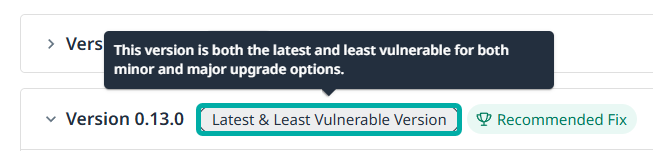

The Least Vulnerable Package information is available in the Recommended Fix tab of the vulnerability:

LVP in the Repo

• Supported on GitHub.com and GitHub Enterprise

• In your repo-config.json or .whitesource file, the “issueType" setting must be set to "DEPENDENCY"

• Remediate must be enabled.

1. Within your Mend repo integration, navigate to your repo-config.json (global) or your .whitesource (local repo) file.

2. Open your repo-config.json or .whitesource file in edit mode and add the leastVulerablePackageSettings.true parameter to enable LVP. This is set at the same level as the scanSettings parameter:

   CODE

   "leastVulnerablePackageSettings": {
      "enabled": true
    }

3. Enable Merge Confidence. by inputting the following parameter in your repo-config.json or .whitesource file → remediateSettings block:

   CODE

   "extends": ["mergeConfidence:all-badges"]

4. Save and commit your changes.

5. Kick-off a Mend scan by: GitHub.com - Initiating a Scan

6. Allow the Mend check run to complete and Remediate PRs to be created.

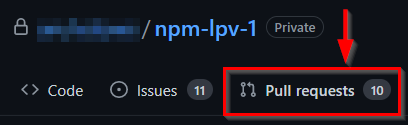

7. Navigate to the Pull requests tab to view your Remediate PRs:



Sample repo-config.json/.whitesource file

{
  "scanSettings": {
    "configMode": "AUTO",
    "configExternalURL": "",
    "projectToken": "",
    "baseBranches": [],
    "enableLicenseViolations": "true"
  },
  "checkRunSettings": {
    "vulnerableCheckRunConclusionLevel": "failure",
    "displayMode": "diff",
    "useMendCheckNames": true
  },
  "issueSettings": {
    "minSeverityLevel": "LOW",
    "issueType": "DEPENDENCY"
  },
  "remediateSettings": {
    "workflowRules": {
      "enabled": true,
      "minVulnerabilitySeverity": "LOW"
    },
    "extends": ["mergeConfidence:all-badges"]
  },
  "leastVulnerablePackageSettings": {
    "enabled": true
  }
}

First Fix

Note: Fix recommendations are calculated at scan runtime. Applications/Projects scanned before the introduction of this feature may require a new scan for recommendations to appear in the UI.

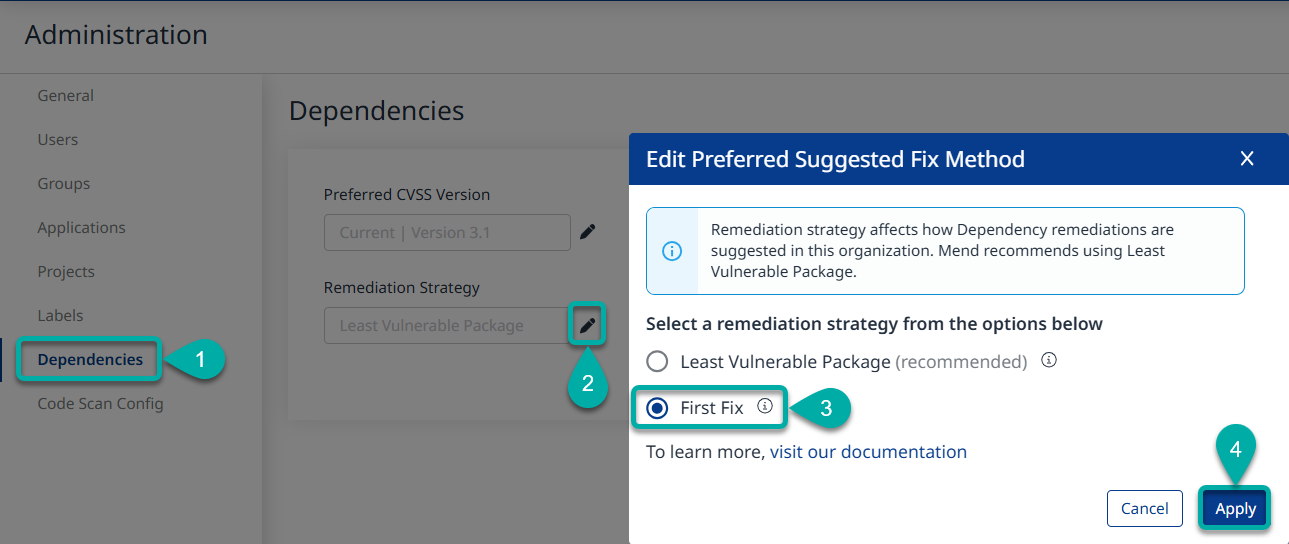

Choose First Fix as your Organization’s Remediation Strategy

Choose Administration from the drop-down menu at the top-right corner.

Step 1 - Click Dependencies on the left-pane menu.

Step 2 - Click the pencil icon to change your organization’s Remediation Strategy.

Step 3 - Select First Fix.

Step 4- Click Apply.

Review the First Fix Recommendations in the Platform UI

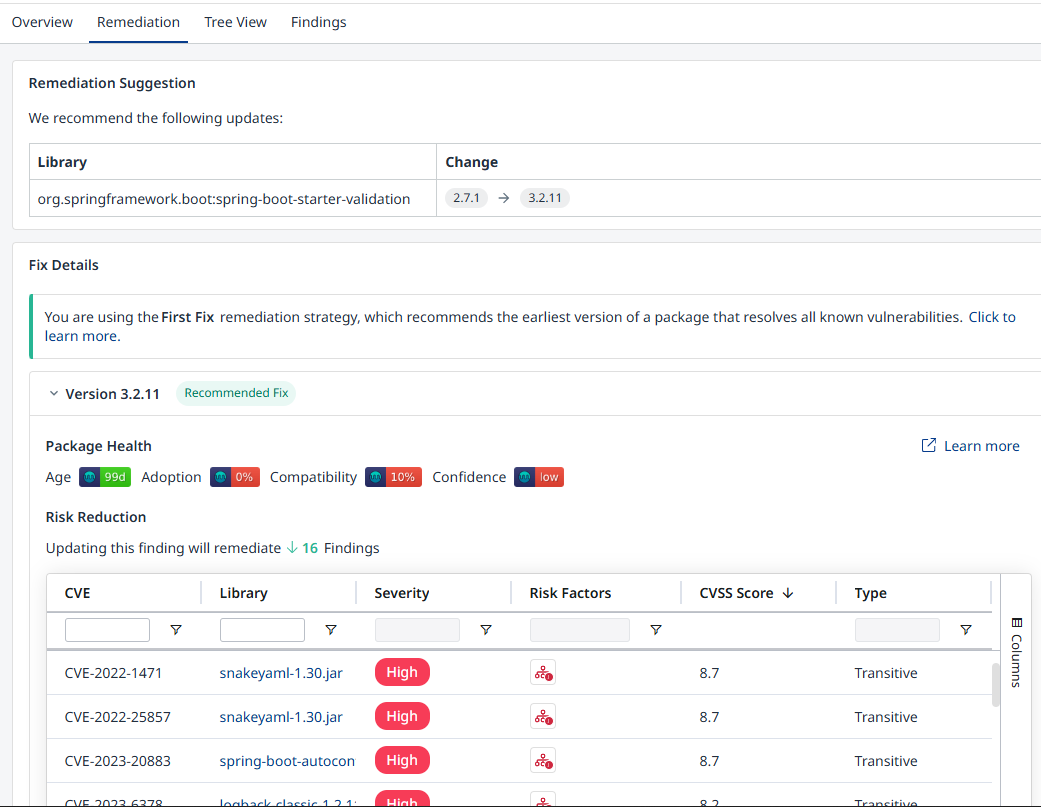

The First Fix information is available in the Recommended Fix tab of the vulnerability:
