View the results of your Mend for GitHub Enterprise SCA scan

Overview

Once your Mend for GitHub Enterprise SCA scan is completed, there are multiple resources provided to help you review, analyze, and triage your results.

GitHub Check

Once the Mend for GitHub Enterprise SCA scan is completed, the Mend checks are updated with the results. Both the Mend Security Check and the Mend License Check include a Scan token, which you can provide to Mend Support for troubleshooting.

Mend Security Check

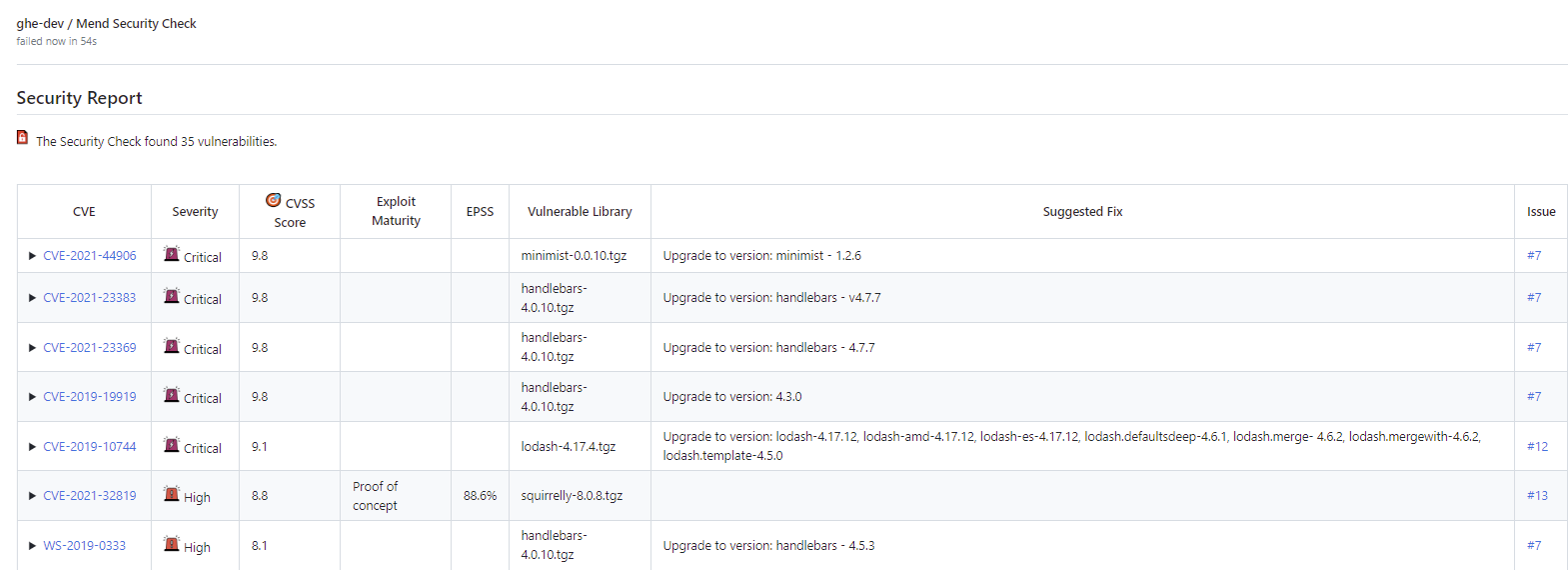

The Security Report within the Mend Security Check populates within an overview of vulnerability findings within the commit:

• CVE: CVE ID of the vulnerability. This links to CVE’s page on Mend’s official database site.

• Severity: Level of severity of the vulnerability (Critical, High, Medium, Low)

• CVSS Score: CVSS Score (CVSS 3).

• *Exploit Maturity: The Exploit Code Maturity (Proof of concept, Functional and High are reported by Mend as exploitable).

• *EPSS: The EPSS percentage (probability of a vulnerability to be exploited).

• Vulnerable Library: Name of the open-source component impacted by the vulnerability.

• Suggested Fix: Fix suggestion to resolve the vulnerability.

• Issue: URL to the related GitHub Issue that was created for the policy violation.

*Applicable when the exploitability flag is enabled, when a vulnerability contains exploitability data.

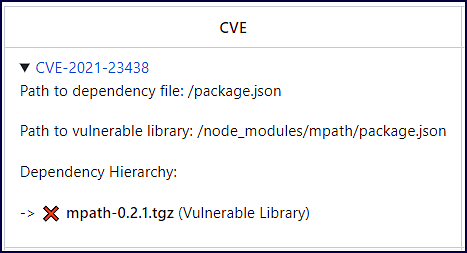

You can also click the dropdown arrow next to each CVE for more details:

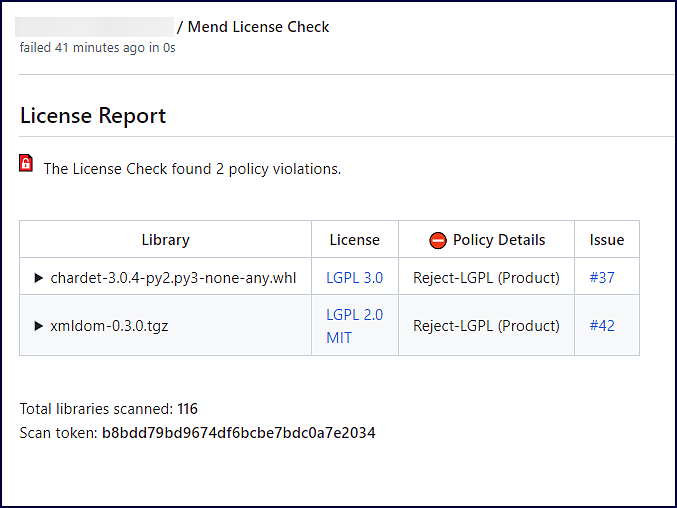

Mend License Check

If you have the license violation analysis enabled as part of your SCA scan, the License Report within the Mend License Check will populate with any policy violation findings:

• Library: Name of the open-source component impacted by the policy violation.

• License: License type that was detected

• Policy Details: Name of the license policy violation as defined in the Mend SCA UI, along with the policy level (Organization/Product/Project).

• Issue: URL to the related GitHub Issue that was created for the policy violation.

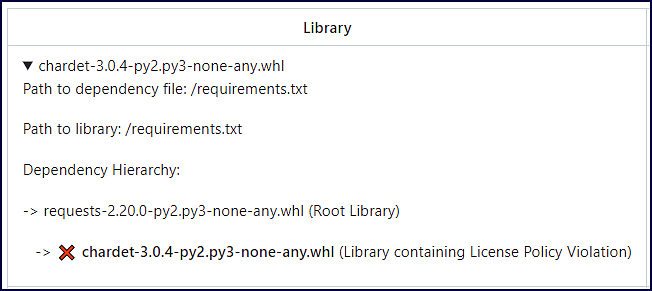

You can also click the dropdown arrow next to each library for more details:

Mend SCA Application

Within the Mend SCA application, a Mend product is created for each repository with a “GH_" prefix. When a scan is completed for each branch defined in your baseBranches parameter, a Mend project is created for that branch with a “GH_" prefix. Let’s look at an example:

GitHub hierarchy:

• My-SCA-Repo repository

  • main branch [default branch]

    • .whitesource file with "baseBranches": ["main", "dev"]

  • dev branch

We run a scan on both the main and dev branches. The Mend hierarchy appears as:

Mend SCA Application hierarchy:

• Product: GH_My-SCA-Repo

  • Project: GH_My-SCA-Repo (the default branch does not get the “_<branchname>" suffix)

  • Project: GH_My-SCA-Repo_dev

You can review each Mend for GitHub Enterprise scan’s summary, details, and more. For more information on how to navigate the Mend SCA application, visit our SCA Web-Based Application documentation:

GitHub Issue

Once the Mend for GitHub Enterprise SCA scan is completed, by default, the Mend SCA Check creates a GitHub Issue for the findings of each SCA component, if any were discovered.

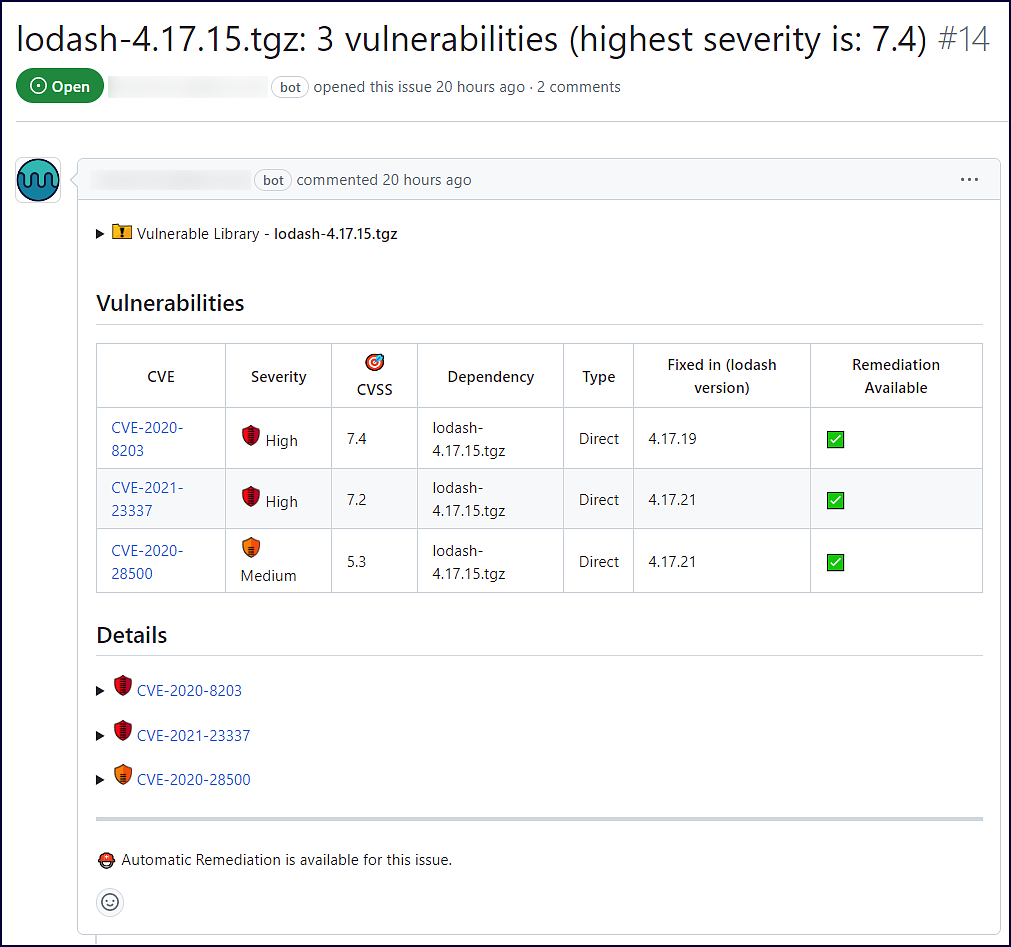

Mend SCA Security Issue

Note: By default, each SCA Security Issue is created with the “Mend: dependency security vulnerability” Issue label.

Component-based Library Security Issues

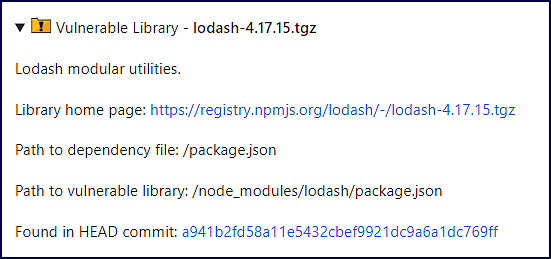

• Vulnerable Library: Name of the vulnerable dependency file. Click on the dropdown arrow for more information. This information includes the path to the dependency file and the path of the library. If the path is of a transitive dependency, then only the path information of the root library is displayed. This section also contains a commit link, which includes the path to the commit link where the vulnerability was found.

Note: The originating branch of the vulnerability is also displayed in case the baseBranches configuration was used.

• Vulnerabilities table:

  • CVE: CVE ID of the vulnerability. This links to CVE’s page on Mend’s official database site.

  • Severity: Level of severity of the vulnerability (Critical, High, Medium, Low)

  • CVSS: CVSS Score (CVSS 3).

  • *Exploit Maturity: The Exploit Code Maturity (Proof of concept, Functional and High are reported by Mend as exploitable).

  • *EPSS: The EPSS percentage (probability of a vulnerability to be exploited).

  • Dependency: Name of the dependency file.

  • Type: The type of dependency (Direct or Transitive).

  • Fixed in: Version of the dependency that fixes the vulnerability.

  • Remediation Available: If remediation is available (via Mend Remediate) there will be a green checkmark icon. If remediation is not available, there will be a red “X” icon.

*Applicable when the exploitability flag is enabled, when a vulnerability contains exploitability data

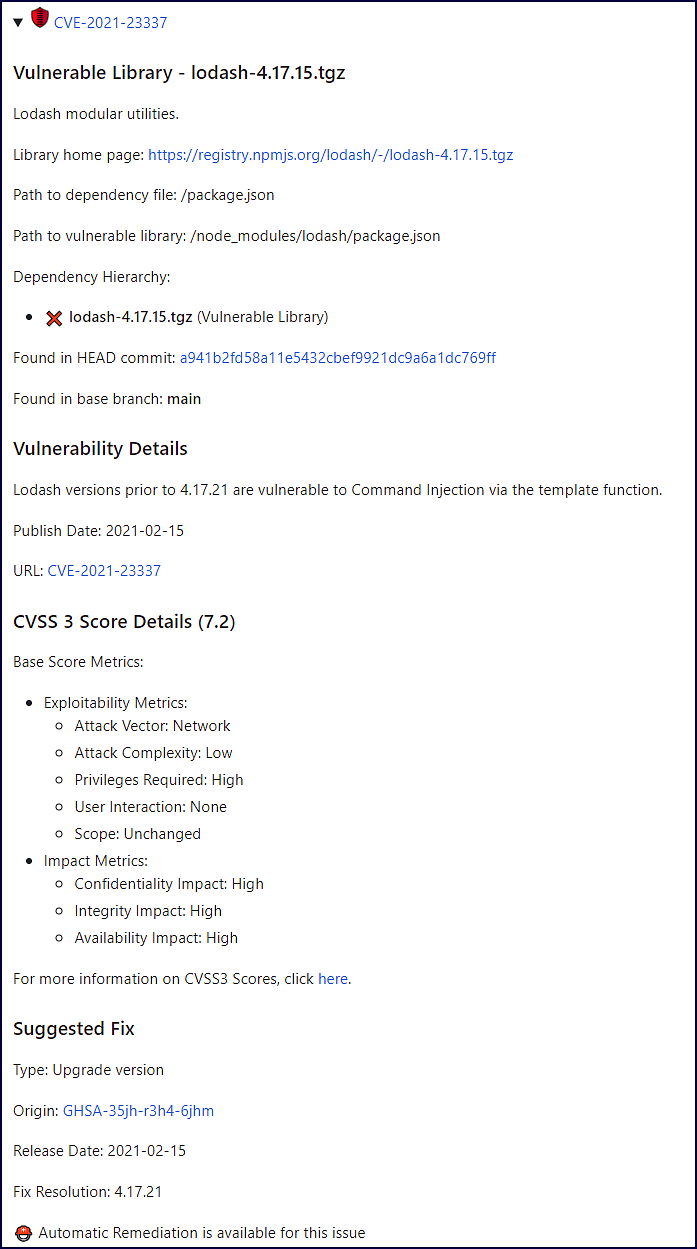

• Details: List of CVEs found by the SCA scan on the open-source component. Click on each CVE’s dropdown arrow for a deep-dive on the CVE vulnerability and how it impacts the open-source component:



Source file-based component:

Note: By default, source file mapping for open-source components is disabled in Mend for GitHub Enterprise.

• Vulnerable library: Includes a description of the vulnerable source library, a link to the source library home page, a commit link, and the path to the commit link where the vulnerability was found. NOTE: The originating branch of the vulnerability is also displayed in case the baseBranches configuration was used.

• Library Source Files - A list of source files found in the vulnerability source library.

• Vulnerability Details: Description of vulnerability, published date, and link to the vulnerability source website.

• CVSS 3 score: Basic CVSS3 score metrics. If this score is not available then the CVSS 2 score is displayed.

• Suggested fix: A detailed suggestion that includes type, origin, release date, and fix resolution. Note that a fix may not always be available.

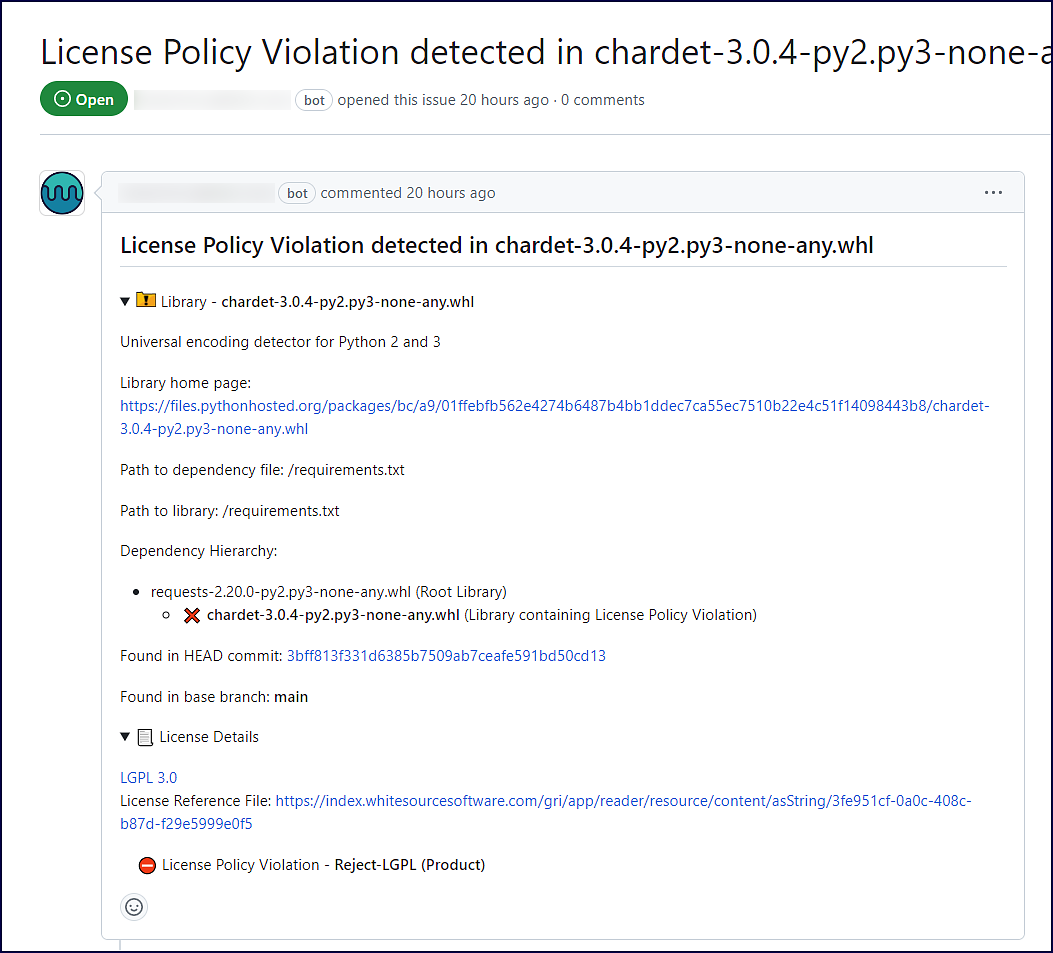

Mend License Violation Issue

Note: If you have the license violation analysis enabled as part of your SCA scan, the integration will create a GitHub Issue for each violation finding. By default, each License Violation Issue is created with the “Mend: license policy violation” Issue label.

• Library: Includes details of the library containing a license policy violation. It also includes the path to the dependency file and the path of the library. If the path is of a transitive dependency, then only the path information of the root library is displayed. This section also contains a commit link, which includes the path to the commit link where the license policy violation was found. NOTE: The originating branch of the license policy violation is also displayed in case the baseBranches configuration was used.

• License Details: Description of the license including the license name, a link to the original license, and a license reference file.

Note: When a policy violation affects a library containing multiple licenses, all of the library licenses are displayed, including the license violating the policy.

• License Policy Violation: The name of the license policy violation as defined in the Mend SCA UI, along with the policy level (Organization/Product/Project).

Email Notification

Email notifications are sent only when you have defined a mail server for your GitHub enterprise account(s).

Once the Mend for GitHub Enterprise SCA scan is completed, if you have GitHub email notifications enabled for GitHub Issues, you will receive an email for each GitHub Issue created by the SCA scan:

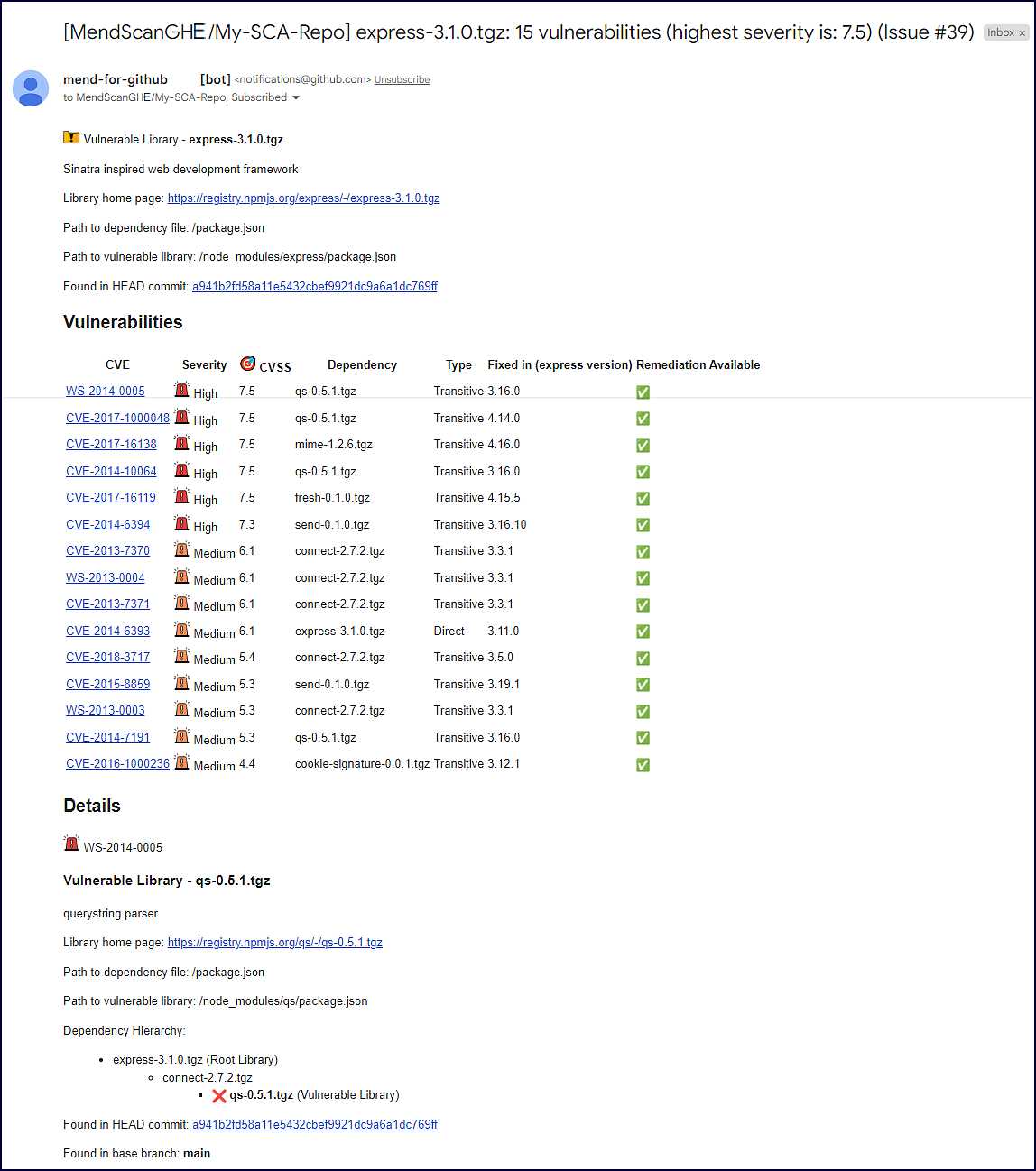

• For security vulnerabilities:

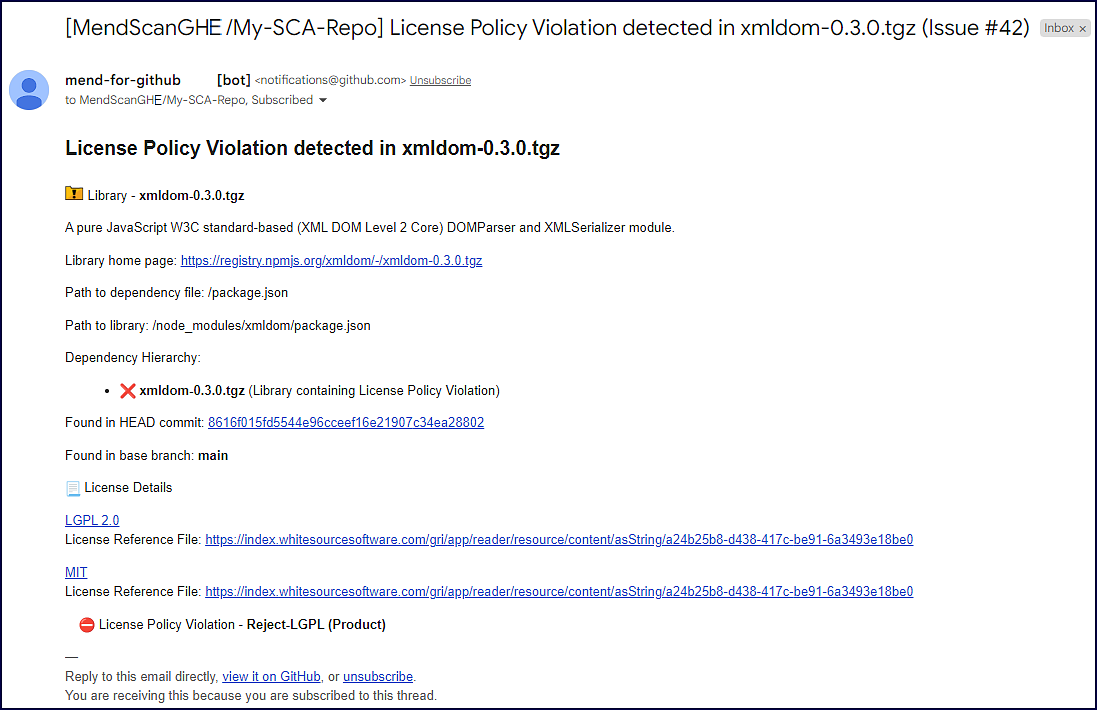

• For license violations:



GitHub Pull Request

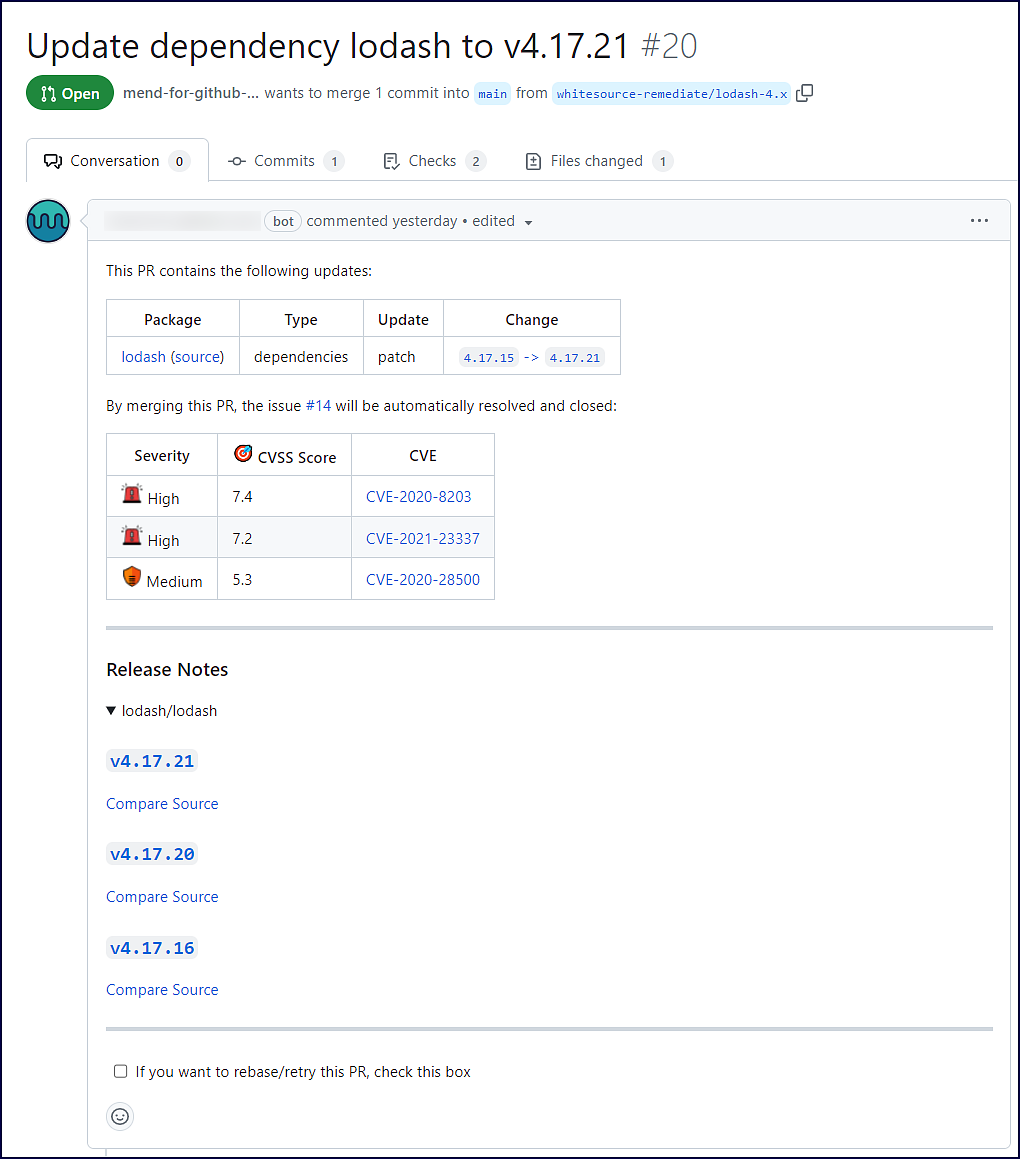

Mend Remediate GitHub Pull Request

Note: By default, Remediate Pull Requests are created with the “security fix” label.

If Remediate is enabled, and remediation is available for an identified open-source vulnerability, a remediate branch called whitesource-remediate/<nameofcomponent>will automatically create a GitHub Pull Request with actions included in the commits to resolve the vulnerability:

• Summary:

  • Package: Name of the open-source component. Includes URL to the vendor and source pages.

  • Type: Type of Remediate update

  • Update: Update action

  • Change: Details on what is being changed

A note is included that links to what GitHub issue will be automatically closed when this Remediate PR is merged.

• Vulnerabilities table: Lists the vulnerabilities that will be resolved with the merge of this Remediate PR.

  • Severity: Level of severity (Critical, High, Medium, Low)

  • CVSS Score: CVSS score of the vulnerability

  • CVE: CVE ID of the vulnerability. This links to CVE’s page on Mend’s official database site.

• Release Notes: Includes URLs to compare the changes between the versions of the open-source component.

For rebasing/retrying the Remediate PR, select the “If you want to rebase/retry this PR, check this box” option.
