JFrog Artifactory Docker Registry Integration
Overview
This topic provides instructions on how to integrate the JFrog Artifactory Docker Registry with the Unified Agent.
Unified Agent supports scanning JFrog Artifactory Docker images on Artifactory Pro version 4 and above.
Prerequisites
Artifactory Pro version 4 and above
Make sure Artifactory is up and running with a valid license
Configured Artifactory HTTP settings
Docker client
The relevant package manager must be installed. For details, see https://docs.mend.io/legacy-sca/latest/getting-started-with-the-unified-agent#GettingStartedwiththeUnifiedAgent-Prerequisites .

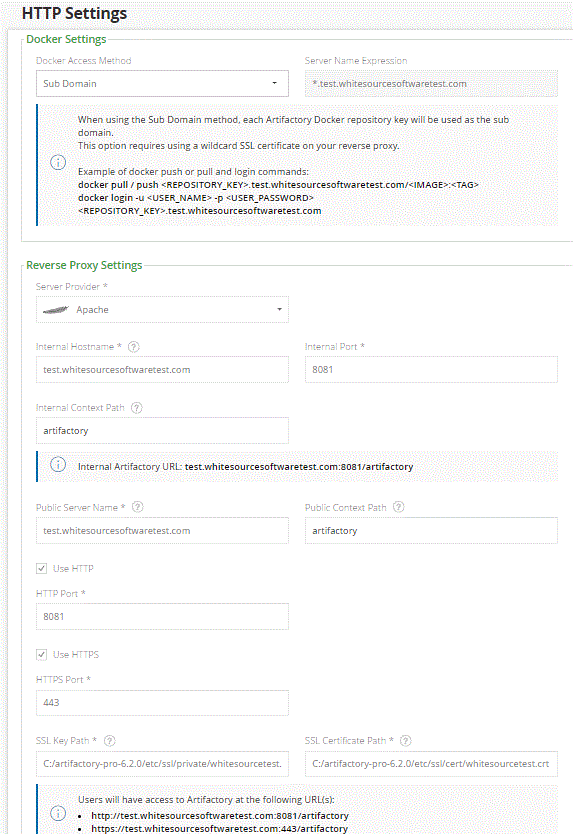

Artifactory HTTP Settings
There are three Docker access method options when configuring Docker HTTP settings. Select one of the following:
'Repository Path' (not available in versions below 5.8)
'Sub Domain'
'Port'
See also these resources:
Artifactory Pro 4.x: https://www.jfrog.com/confluence/display/RTF4X/Getting+Started+with+Docker+and+Artifactory
Artifactory Pro latest version: https://www.jfrog.com/confluence/display/RTF/Getting+Started+with+Artifactory+as+a+Docker+Registry
Configuration Parameters
Attribute | Type | Description | Required |
|---|---|---|---|
docker.artifactory.enable | Boolean | Enables pulling Docker Images from Artifactory Pro Docker registry. Note: Verify that the 'docker.scanImages' and 'docker.pull.enable' parameter values are also set to 'true'. | Yes |
docker.artifactory.url | String | Artifactory URL including http:// or https:// and contextpath (Artifactory default contextPath is “/artifactory" ) | Yes |
docker.artifactory.userName | String | Username for Artifactory Pro Docker registry | Yes |
docker.artifactory.userPassword | String | Password for Artifactory Pro Docker registry | Yes |
docker.artifactory.repositoriesNames | String | Repository names in Artifactory Pro Docker registry separated by a space. If the customer uses port method “docker.artifactory.dockerAccessMethod=port” and is a read-only user - the customer must add “repository port” to each repository in ‘docker.artifactory.repositoriesNames' in this format: <repositoryName>:<repositoryPort> | Yes |
docker.artifactory.dockerAccessMethod | String | Required when the user has read-only access. | No |
Parameters 'docker.scanImages' and 'docker.pull.enable' should be set to true.
