Configure your private Docker Hub registry with Mend

Overview

The Mend CLI container image registry scanning solution can integrate with your private Docker Hub registry with a provided username and password.

Getting it done

Prerequisites before you integrate your private Docker Hub with Mend

• Your Mend user must be an organization administrator in order to access the Cloud Native UI.

• Have an existing and active Docker Hub account. No additional permissions are necessary.

Set up your private Docker Hub registry configuration

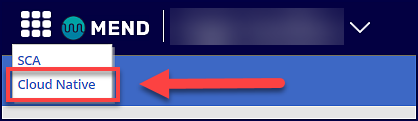

1. Within the Mend Application, navigate to the Cloud Native UI:

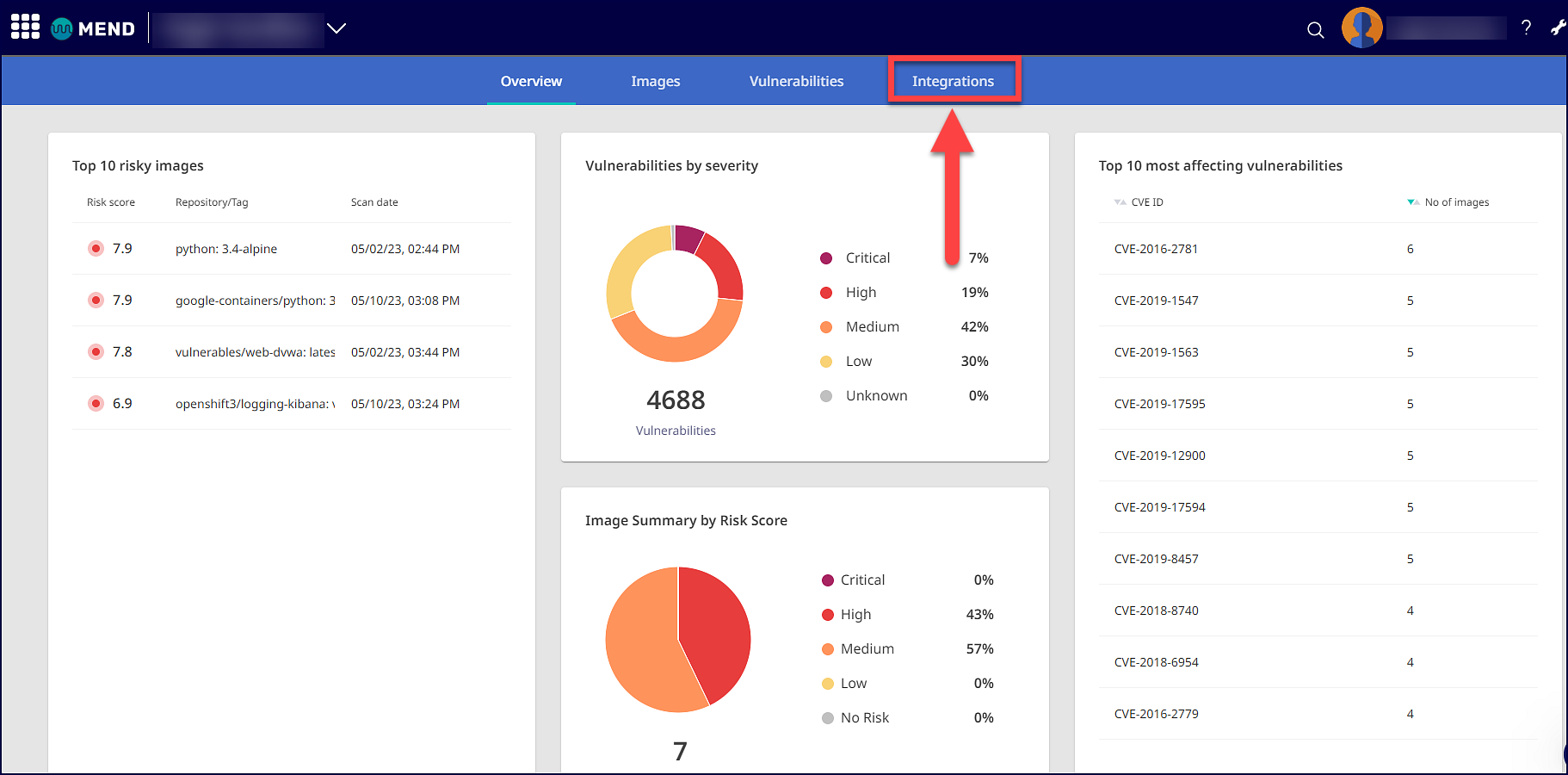

2. Navigate to the Integrations dashboard:

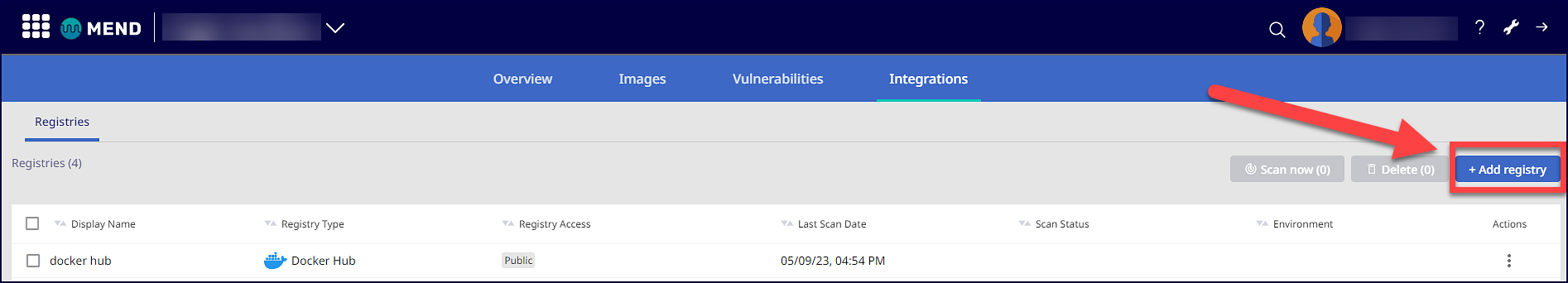

3. Click on + Add registry:

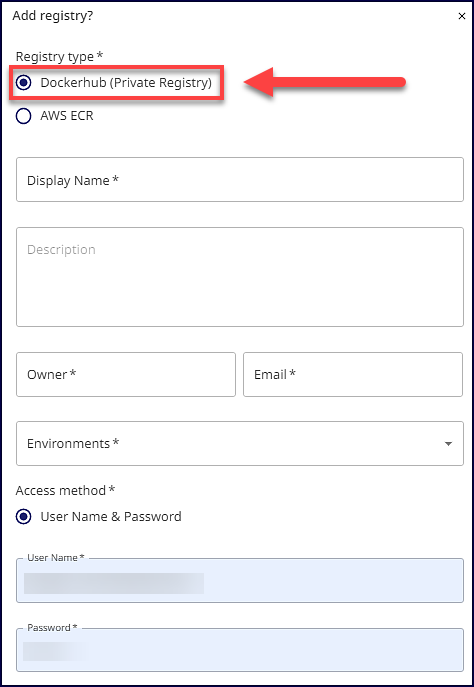

4. The Add registry? pop-up wizard appears. Select Docker Hub for the Registry Type setting to start the configuration setup for Docker Hub.

5. Fill out the configuration with your private Docker Hub registry information. For more information on the parameters provided, refer to the Private Docker Hub parameters section within this document:



6. Once you have finished filling out the configuration scroll down to the bottom of the wizard and click on Add to add your private Docker Hub registry to the registry integration:



7. The Registry Added Successfully pop-up message displays once the integration credentials and configuration have been successfully verified:



Note: Before adding your registry, we will automatically try to connect to it to ensure the credentials are valid and the URL is accessible via the Mend Application.

Reference

Private Docker Hub parameters

Parameter	Description
Display Name	Type the name of your registry. This will be displayed in the Integrations dashboard.
Description	Optional. Provide any text. We recommend providing information that will help you remember the integration and the relevant registry.
Owner	Provide the name of the user setting up the registry integration.
Email	Provide the email address of the user setting up the registry integration.
Environments	Select the type of environment of your private Docker Hub registry (multiple options can be selected). The environment options are: Production Dev QA Staging
Access Method	Select User Name & Password.
User Name	Provide the relevant private Docker Hub registry username. Note: This is not the email address associated to the Docker Hub account. This setting is explicitly meant for the Docker Hub username.
Password	Provide the relevant private Docker Hub registry user password.
