Least Vulnerable Packages Feature

Least vulnerable packages (LVP) automatically suggests the newest, least vulnerable library version and then auto-generates a PR for that version.

How does Mend calculate the risk reduction for LVP?

Our new approach to remediation with LVP is to establish a fix from a dependency tree perspective that will provide the greatest risk reduction. We calculate this risk score using the vulnerability(ies) CVSS 3.0 scores from each version’s dependency tree via the sum of the formulas for each severity below:

Icon	Severity & CVSS Score	Formula
	(C) Critical (9.0-10.0)	10,000 x CVSS Score
	(H) High (7.0-8.9)	1,000 x CVSS Score
	(M) Medium (4.0-6.9)	10 x CVSS Score
	(L) Low (0.1-3.9)	1 x CVSS Score

Example

Let’s take a look at an example. For your application, you decide to add the npm library, express v3.0.0, and commit this change to your repository’s main branch, kicking off a Mend scan. Express v3.0.0 has a total of 17 transitive dependencies. Let’s review its dependency tree and vulnerabilities:

CODE

express-3.0.0.tgz (1 Medium)
	→ commander-0.6.1.tgz
	→ connect-2.6.0.tgz (5 Medium)
		- bytes-0.1.0.tgz
		- formidable-1.0.11.tgz
		- pause-0.0.1.tgz
		- qs-0.5.1.tgz (3 High, 1 Medium)
		- send-0.0.4.tgz (1 High, 1 Medium)
	→ cookie-0.0.4.tgz
	→ crc-0.2.0.tgz
	→ debug-4.3.4.tgz
		- ms-2.1.2.tgz
	→ fresh-0.1.0.tgz (1 High)
	→ methods-0.0.1.tgz
	→ mkdirp-0.3.3.tgz
	→ range-parser-0.0.4.tgz
	→ send-0.1.0.tgz (1 High, 1 Medium)
		- mime-1.2.6.tgz (1 High)

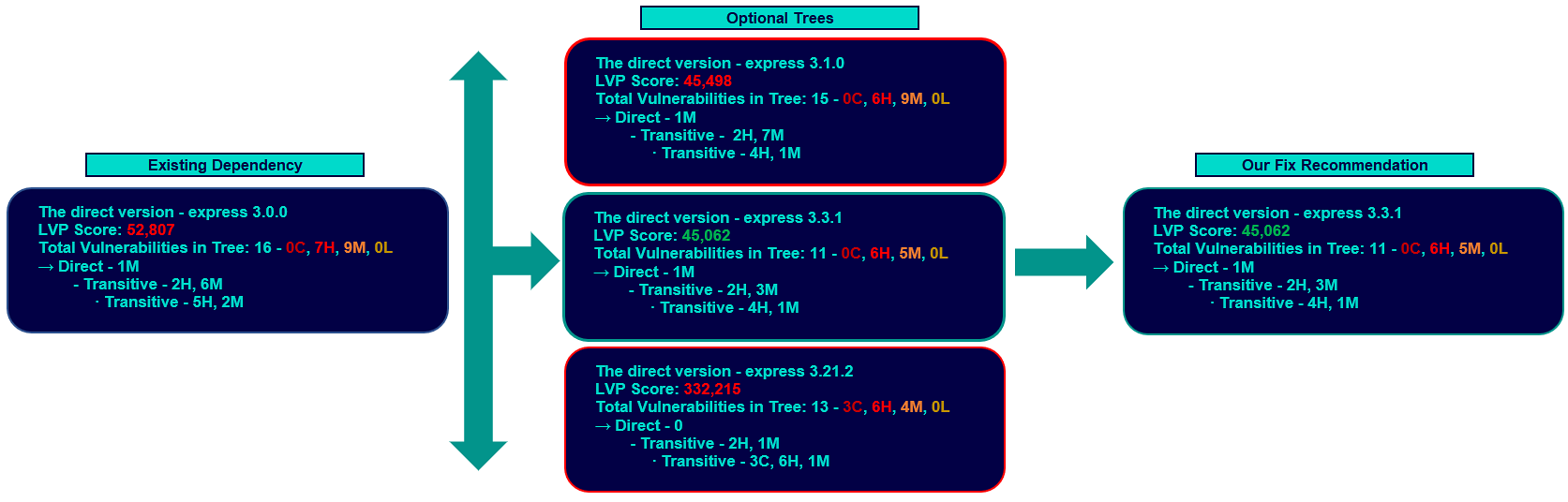

Adding up, express v3.0.0’s dependency tree has 16 total vulnerabilities, 7 High and 9 Medium. We then compare all other minor 3.x versions of express against v3.0.0 using our risk-scoring equation to determine the least vulnerable dependency tree. Let’s look at a visual of the scoring and decision-making below:

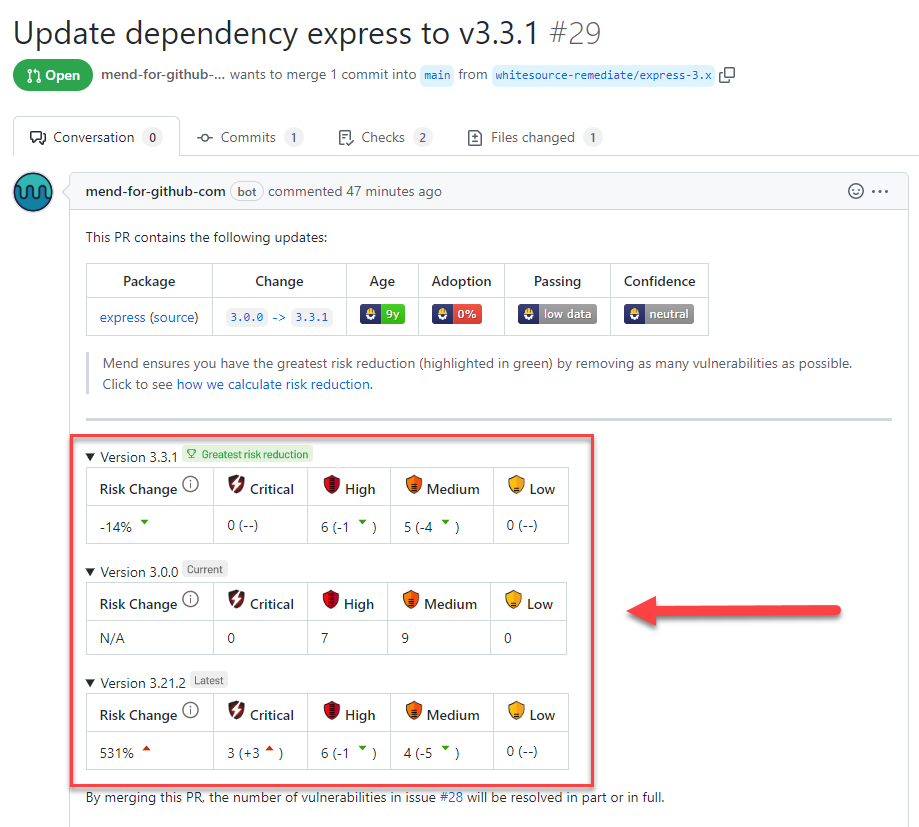

This results in the PR being generated with express v3.3.1 as the greatest risk reduction remediation fix, with a total of 11 vulnerabilities. We also display the vulnerability counts of the current version in your repository (express v3.0.0) and the latest available 3.x minor version (express v3.21.2). We did not recommend updating to v3.21.2 here as it has a numerically higher LVP score, with more, severe vulnerabilities than the current version and v3.3.1:

Procedure

Before You Begin

Supported on GitHub.com and GitHub Enterprise
Only supports npm and/or Maven repos
Evaluates minor versions only
In your repo-config.json or .whitesource file, the “issueType" setting must be set to "DEPENDENCY"
Remediate must be enabled

Steps

Within your Mend repo integration, navigate to your repo-config.json (global) or your .whitesource (local repo) file.
Open your repo-config.json or .whitesource file in edit mode and add the leastVulerablePackageSettings.true parameter to enable LVP. This is set at the same level as the scanSettings parameter:
CODE
```
"leastVulnerablePackageSettings": {
   "enabled": true
 }
```
Enable Merge Confidence. by inputting the following parameter in your repo-config.json or .whitesource file → remediateSettings block:
CODE
```
"extends": ["mergeConfidence:all-badges"]
```
Save and commit your changes.
Kick-off a Mend scan by: GitHub.com - Initiating a Scan
Allow the Mend check run to complete and Remediate PRs to be created.

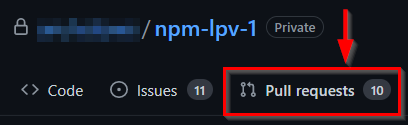

Navigate to the Pull requests tab to view your Remediate PRs:

Sample repo-config.json/.whitesource file

CODE

{
  "scanSettings": {
    "configMode": "AUTO",
    "configExternalURL": "",
    "projectToken": "",
    "baseBranches": [],
    "enableLicenseViolations": "true"
  },
  "checkRunSettings": {
    "vulnerableCheckRunConclusionLevel": "failure",
    "displayMode": "diff",
    "useMendCheckNames": true
  },
  "issueSettings": {
    "minSeverityLevel": "LOW",
    "issueType": "DEPENDENCY"
  },
  "remediateSettings": {
    "workflowRules": {
      "enabled": true,
      "minVulnerabilitySeverity": "LOW"
    },
    "extends": ["mergeConfidence:all-badges"]
  },
  "leastVulnerablePackageSettings": {
    "enabled": true
  }
}
